B-050H-0052-0100-NFB - Datasheet
MBA
Category Information

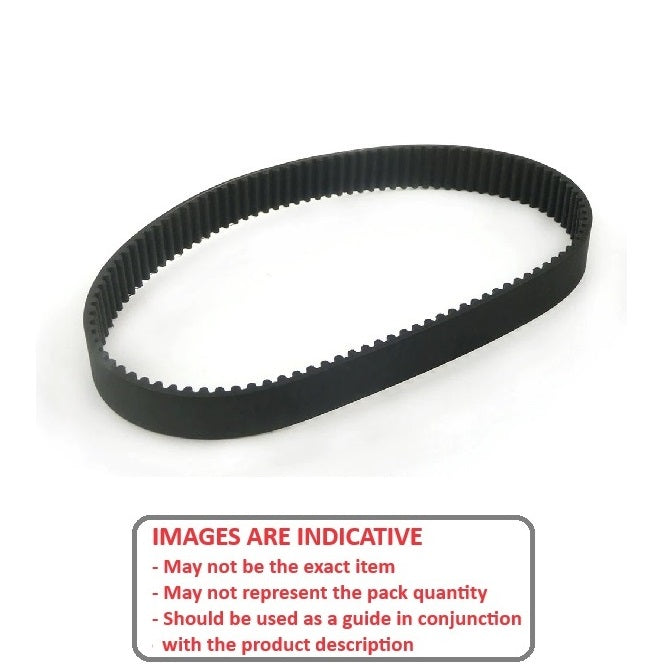

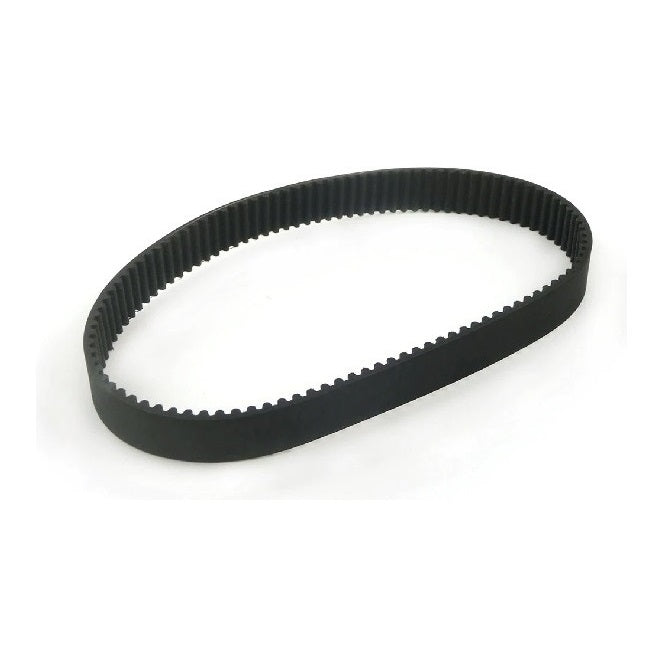

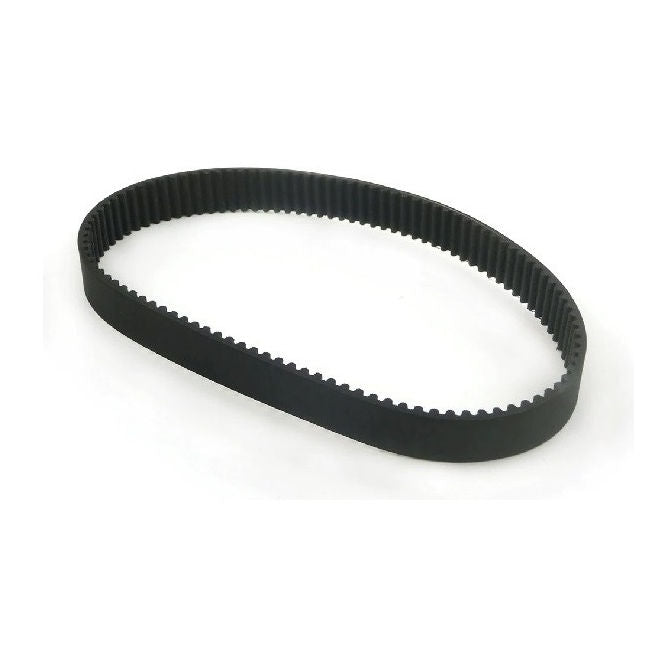

Belts - Timing 5.000mm Pitch - HTD - 9mm Wide - Single SidedSingle Sided 9mm Wide HTD Timing 5.000mm Pitch Belts. HTD Series Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

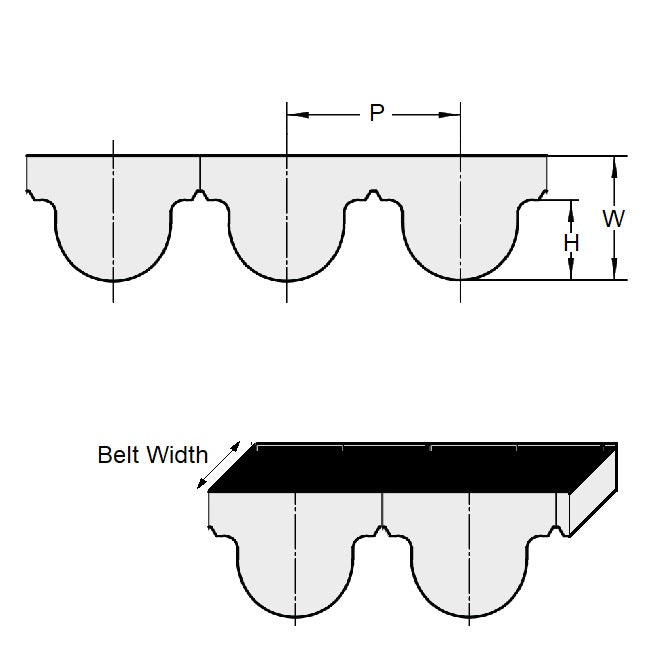

- Tooth Length (T) - 3.05mm
- Tooth Height (H) - 2.08mm
- Belt Height (W) - 3.8mm
- Pitch (P) - 5mm
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 52
- Length
260
mm
(Equiv. 10.236 in.) - Width
9.0
mm
(Equiv. 0.354 in.) - Reinforcement Fibreglass
- Appearance Black
- Breaking Strength 2844 N
- Min Temperature (C) -34 Deg C
- Max Temperature (C) 85 Deg C
- Special Comments 10mm Width (Non Standard)
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates 260-5M-10
- 2605M10
