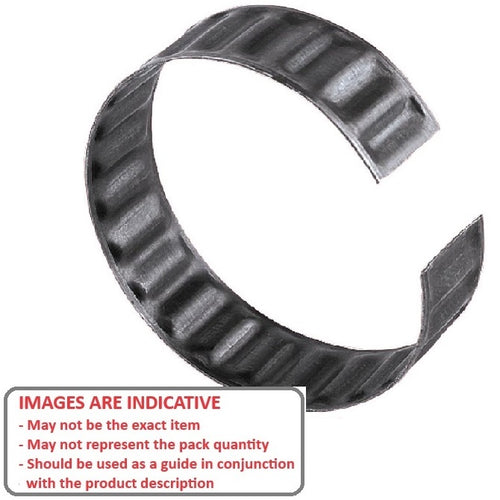

TR-520-544-150-S3 - Datasheet
MBA
Category Information
Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data

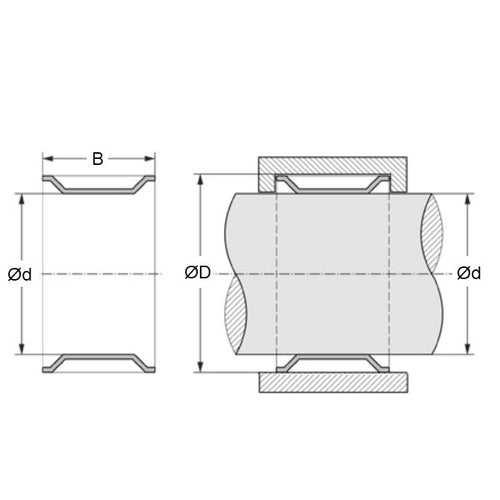

- Inner Part OD (d)
:
52.000 to 51.987
mm
(Equiv. 2.047 in.) - Housing ID (D)
54.35 to 54.48
mm
(Equiv. 2.14 in.) - Ring Width (B)
15.00
mm
(Equiv. 0.591 in.) - Style For bearing OD
- Max. Radial Load 335 N
- To Suit OD of Bearing 52mm (6006, 6205, 6304)
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
