B-MXL-0510-0064-NFB - Datasheet
MBA
Category Information

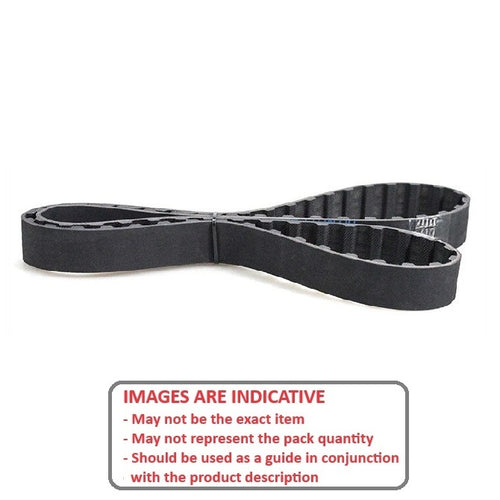

Belts - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Single SidedSingle Sided 6.4mm Wide 2.032mm Pitch MXL Inch Timing Belts. Standard Series Timing Belts 2.032mm or 0.08 inch pitch. 6.35mm (1/4 inch) widths +/- 0.2mm
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- Tooth Length (T) - 0.76mm
- Tooth Height (H) - 0.46mm
- Belt Height (W) - 1.14mm - Corner Radii ( r ) - 0.13mm
- Pitch (P) - 2.032mm (0.08 inch)
Product Data
- Number of Teeth : 510
- Length
1036.32
mm
(Equiv. 40.8 in.) - Width
6.4
mm
(Equiv. 0.252 in.) - Reinforcement Fibre Glass
- Appearance Black
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-TBN510MXL025
- CTBN510MXL025
