B-050A-0051-0160-PSA - Datasheet
MBA
Category Information

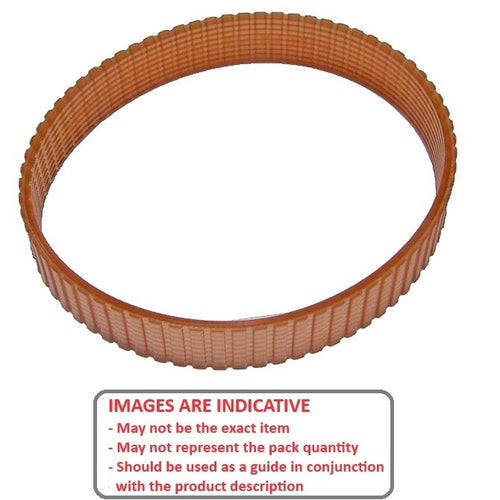

Belts - Timing 5.000mm Pitch - AT5 - 16mm Wide16mm Wide AT5 Timing 5.000mm Pitch Belts. AT Synchroflex Generation III Series Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- Tooth Length (T) - 2.5mm
- Tooth Height (H) - 1.2mm
- Belt Height (W) - 2.7mm - Corner Radii ( r )- 0.6mm
- Pitch (P) - 5mm
Product Data
- Number of Teeth : 51
- Length
255
mm
(Equiv. 10.039 in.) - Width
16.0
mm
(Equiv. 0.63 in.) - Reinforcement Steel
- Appearance Translucent
- Breaking Strength 4096 N
- Tooth Angle 50 °
- Material Polyurethane with Steel Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates 16AT5-255
- 16AT5255G3
- 16AT5-255-G3
