PFL-L9-020-A - Datasheet
MBA
Category Information

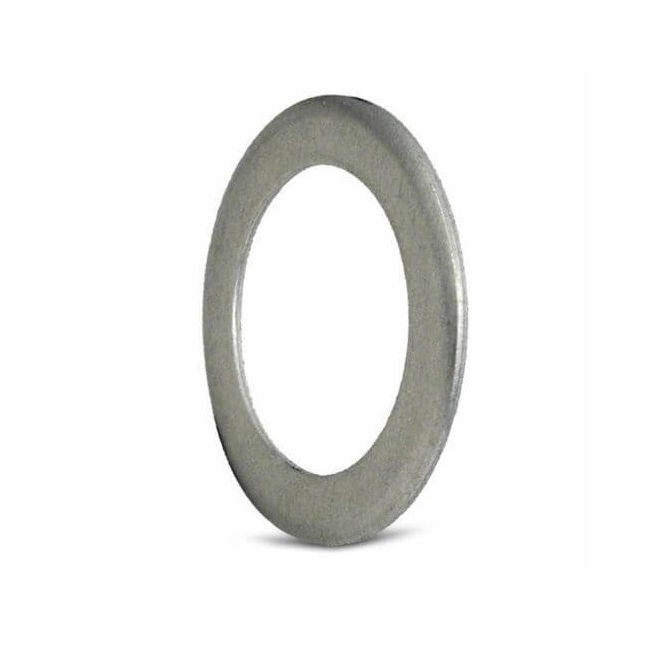

Pulley Flanges - Timing - Suit 9.525mm L Series - AluminiumAluminium Suit 9.525mm L Series Timing Pulley Flanges. Use with timing pulley stock to custom make your own pulleys
- Timing pulley flanges are available in aluminium and carbon steel, and suit the timing pulley stock sizes listed on this site.
- These flanges provide a quick low cost way to cap the sides of special size timing pulleys made from stock lengths, without having to machine special flanges in the design.
Product Data
- Inside Diameter (d)
:
51.680
mm
(Equiv. 2.035 in.) - Outside Diameter (D)
66.60
mm
(Equiv. 2.622 in.) - Suits Pulley Grooves 20 No.
- Width (H) 2.30 mm
- Thickness (S) 1.40 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 20L-FA
- 20LFA
- A6A4-20FA
- A6A420FA
