MAG-CP-052-08-10-SD-B - Datasheet

MBA

Category Information

Magnets - Cup Assemblies Stud

Cup Assemblies Stud Magnets. This is the main category in this series

    Product Data

    • Diameter (A) : 51.59 mm
      (Equiv. 2.031 in.)
    • Thickness (B) 7.94 mm
      (Equiv. 0.313 in.)
    • Thread Size 10-24 UNC
    • Thread Length 44.45 mm
    • Holding Value 17.24 kg
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM-52
      • IM52
      View full details

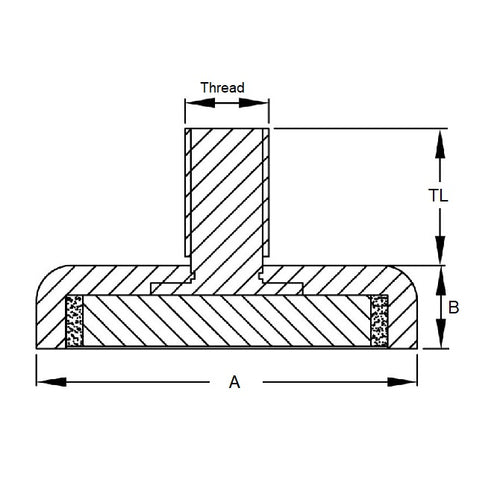

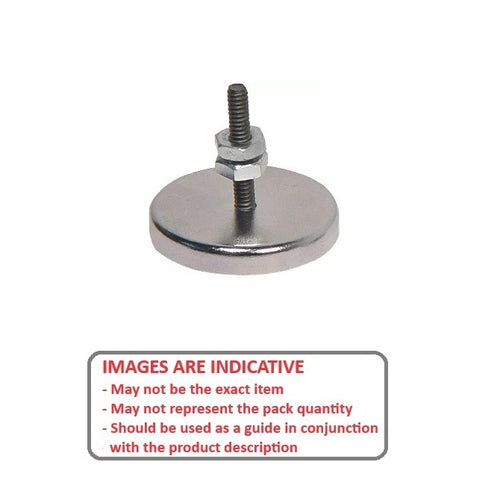

      MAG-CP-052-08-10-SD-BDiagramMAG-CP-052-08-10-SD-BImage
