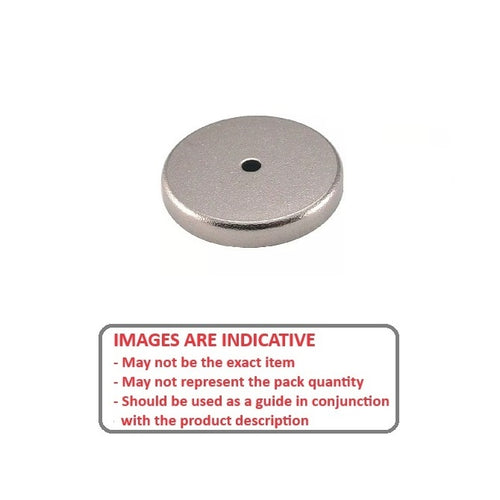

MAG-CP-052-08-11-H-B - Datasheet
MBA
Category Information
Magnets - Cup Assemblies Through HoleCup Assemblies Through Hole Magnets. This is the main category in this series
Product Data

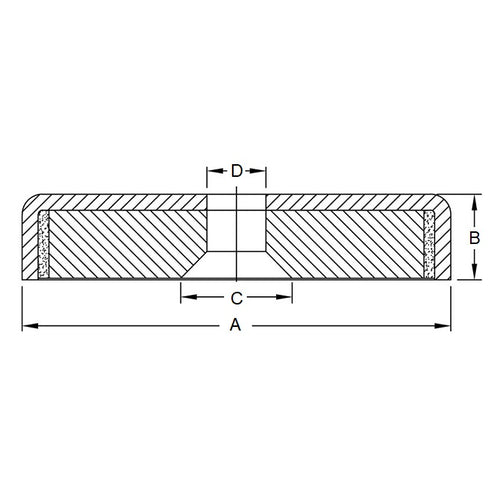

- Diameter (A)
:
51.56
mm
(Equiv. 2.03 in.) - Thickness (B)
7.94
mm
(Equiv. 0.313 in.) - Hole Recess (C)
11.11
mm
(Equiv. 0.437 in.) - Hole Top Diameter (D) 4.76 mm
- Holding Value 43 Kg
Product Compliance and Data
Additional Resources
Cross References
- IM-331
- IM331
