CCE-05000-CZ - Datasheet
MBA
Category Information

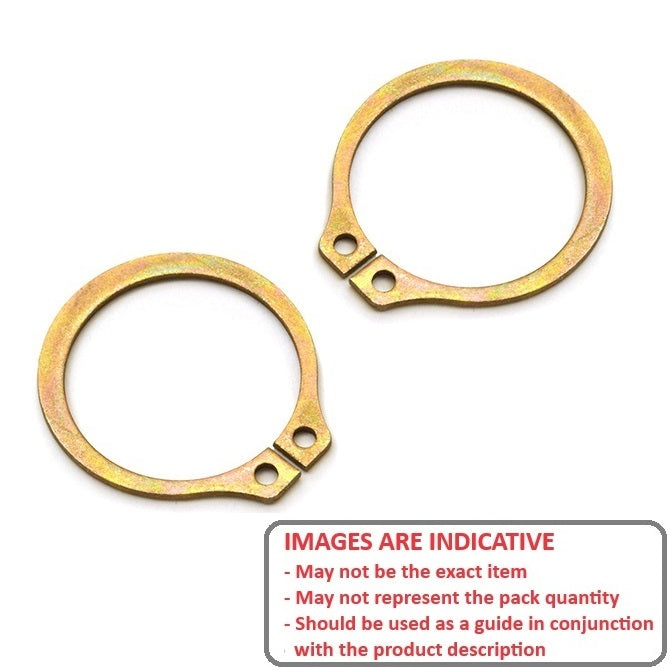

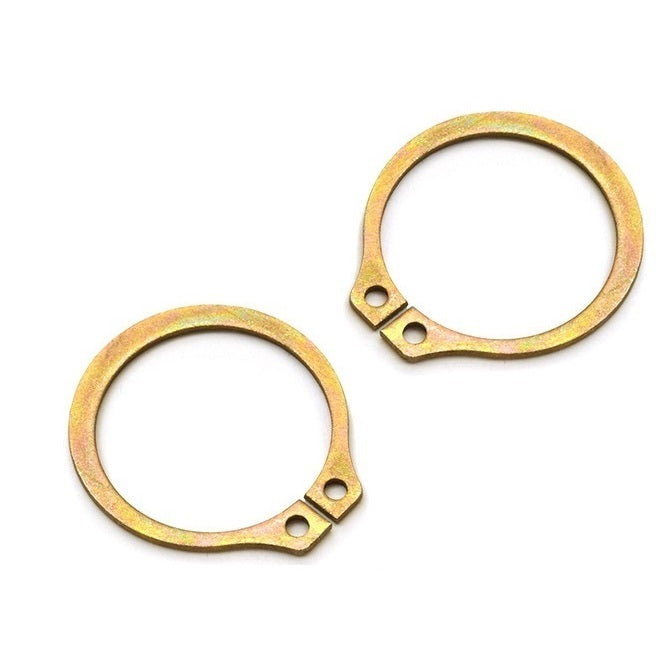

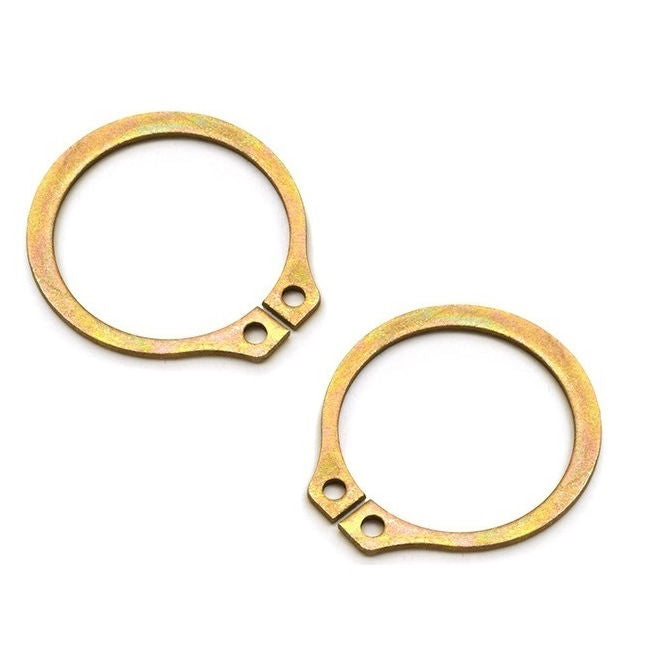

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds)
:
50.00
mm
(Equiv. 1.969 in.) - Clip Thickness (T)
2.00
mm
+ 0.00 / - 0.25
(Equiv. 0.079 in.) - Groove Dia. (Dg)
46.75
mm
+ 0.00 / - 0.06
(Equiv. 1.841 in.) - Approx. Loose Circlip ID (A) 45.80 mm
- Groove Width (W) 2.15 mm
- Clearance on Shaft (C1) 60.80 mm
- Clearance in Groove (C1) 64.50 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 4.50
- Standard DIN471
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-050-ZD
- 90154A768
- Seeger A-050-ZD
- Seeger A50X2Z
- Bossard BN818-050-ZD
- Waldes D1400-050-ZD
- NoCor DSH-050-ZD
- Rotor Clip DSH-050-ZD
- DSH050ZD
- 1400-0500AZD
- 14000500AZD
- D14000500AZD
- D1400050ZD
- D1400-0500AZD
- A050ZD
- 471050ZD
- BN818050ZD
