RGEAMR2.0-500-N - Datasheet
MBA
Category Information

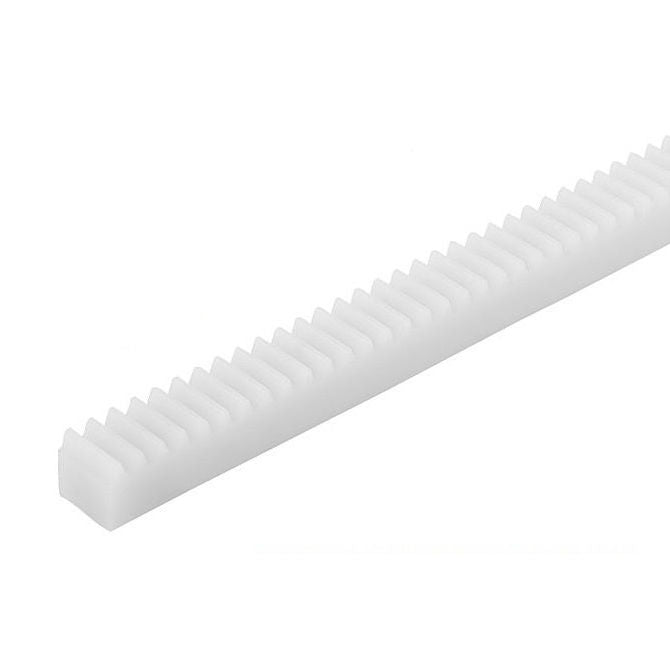

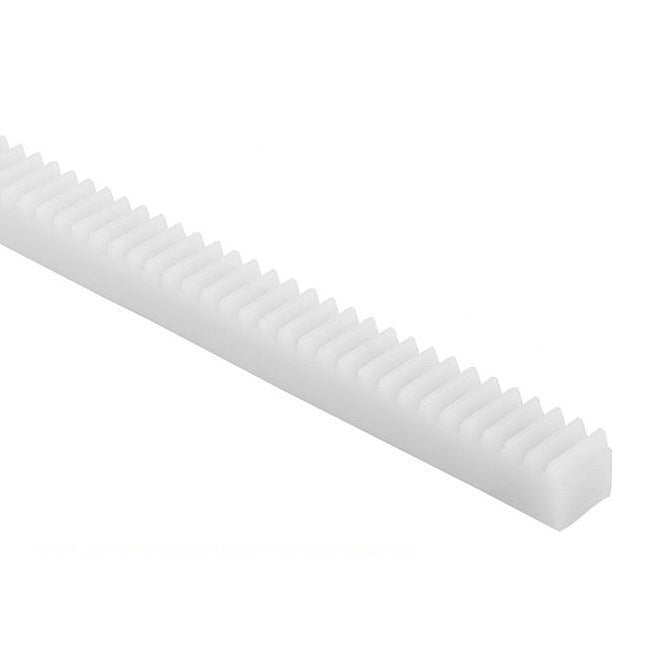

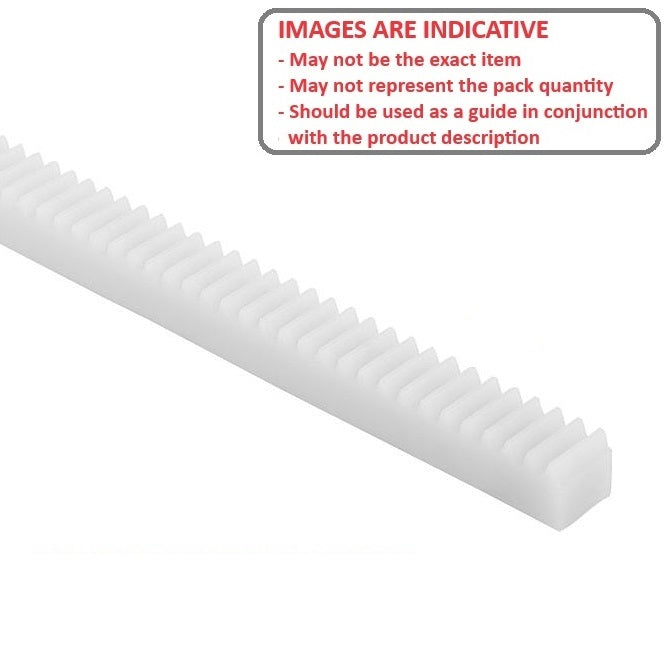

Gears - Rack - Metric - Module 2 - PlasticPlastic Module 2 Metric Rack Gears. 20 Degree Pressure Angle. Acetal and nylon.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L)
:
505
mm
(Equiv. 19.882 in.) - Face Width (fw)
20.000
mm
(Equiv. 0.787 in.) - Height (h)
25.000
mm
(Equiv. 0.984 in.) - Pitch Type Module 2
- Pressure Angle 20 °
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Misumi RGEAMR2.0-500-N
- RGEAMR20500N
