RGEAMR1.0-500-N - Datasheet
MBA
Category Information

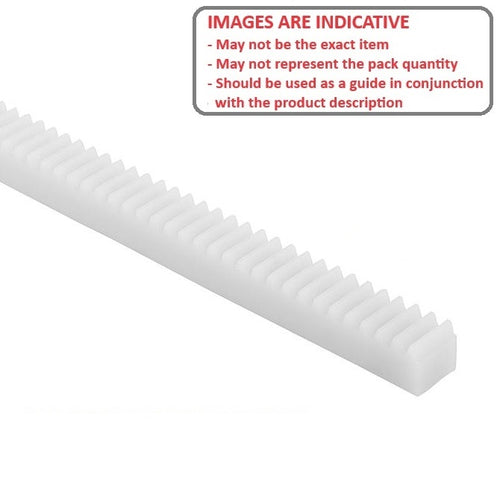

Gears - Rack - Metric - Module 1 - PlasticPlastic Module 1 Metric Rack Gears. 20 Degree Pressure Angle. Acetal and Nylon
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L) : 505 mm
- Face Width (fw) 10.000 mm
- Height (h) 12.000 mm
- Pitch Type Module 1
- Pressure Angle 20 °
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Misumi® RGEAMR1.0-500-N
- RGEAMR10500N
