MSF-064C-S3 - Datasheet
MBA
Category Information

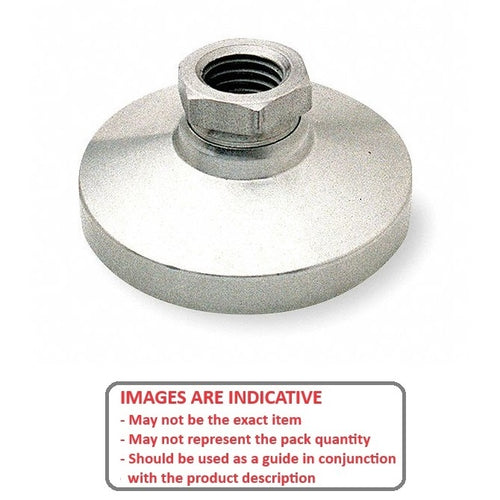

Mounts - Levelling Socket - Swivel - 303 Stainless - StandardStandard 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
17.8
mm
(Equiv. 0.701 in.) - Min. Thread Depth 7.9 mm
- Base Height (E) 3.81 mm
- Load Rating 500 Kg
- 303 Stainless
- Hex Flats (B) 12.70 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 6103K28
- MSF0505064CS3
- L-6SS
- L6SS
