MSF-064C-CGC - Datasheet
MBA
Category Information

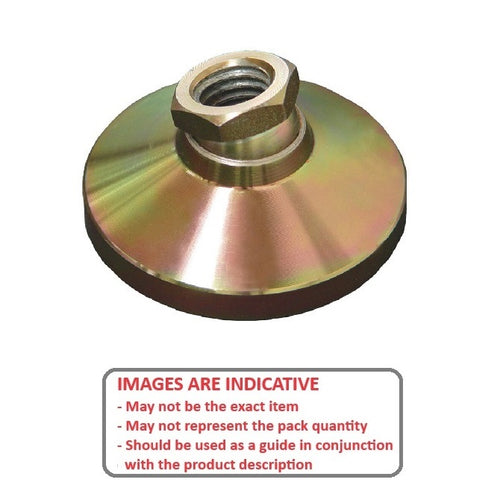

Mounts - Levelling Socket - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
17.9
mm
(Equiv. 0.705 in.) - Base Height (E) 3.80 mm
- Load Rating 500 Kg
- Steel
- Finish Gold Chromate
- Hex Flats (B) 12.70 mm
- Material Gold Chromate
Product Compliance and Data
Additional Resources
Cross References
- RSL-11
- RSL11
- MLF0500064CG
- HVL6
- HVL-6
