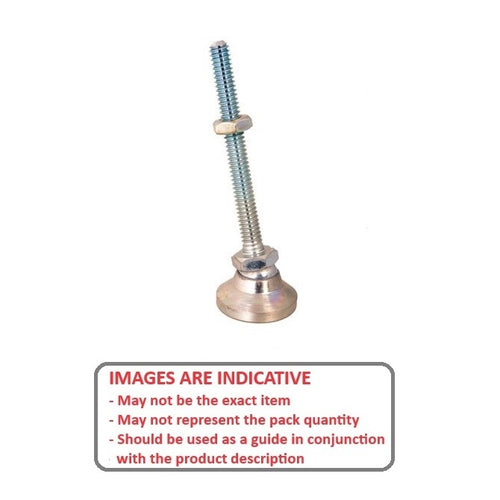

MSM-064C-032-CCC - Datasheet
MBA
Category Information
Mounts - Levelling Studded - Swivel - Clear Chromate - StandardStandard Clear Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
17.9
mm
(Equiv. 0.705 in.) - Thread Length (F) 31.8 mm
- Base Height (E) 3.97 mm
- Overall Height 49.7 mm
- Load Rating 500 Kg
- Finish Clear Chromate
- Hex Flats (B) 12.700 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6111K75
- MSM0500064CCC
- TLS0
- TLS-0
