MSM-064C-064-CBC - Datasheet
MBA
Category Information

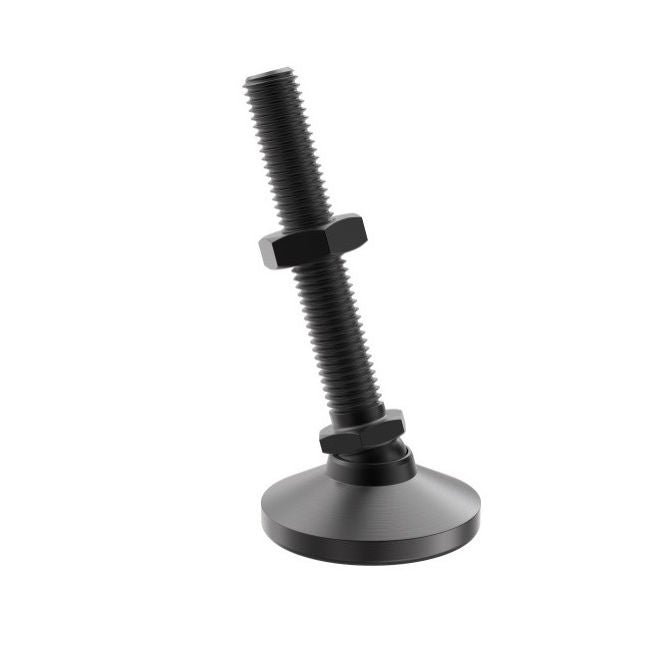

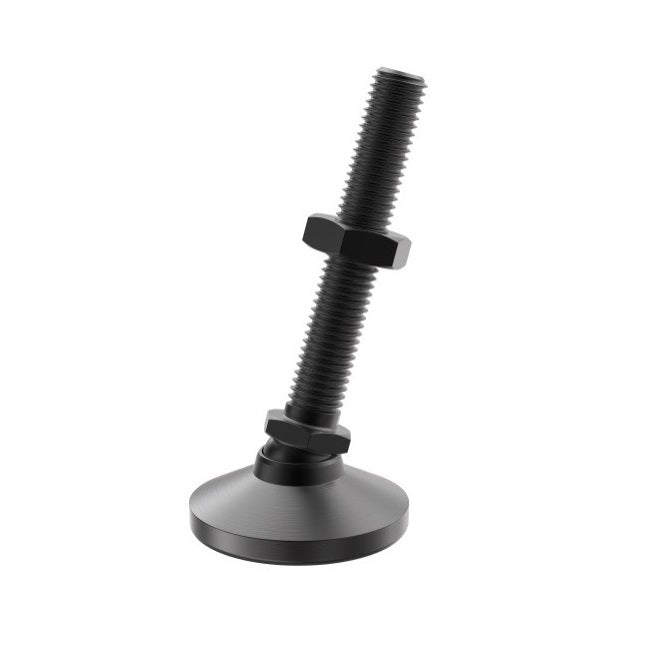

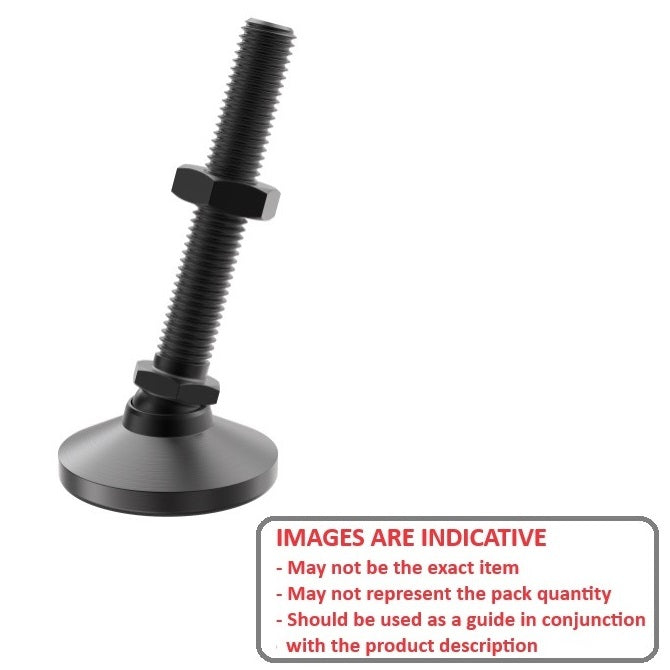

Mounts - Levelling Studded - Swivel - Black Chromate - StandardStandard Black Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
17.9
mm
(Equiv. 0.705 in.) - Thread Length (F) 63.5 mm
- Base Height (E) 3.97 mm
- Overall Height 81.4 mm
- Load Rating 500 Kg
- Finish Black Chromate
- Hex Flats (B) 12.700 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6111K217
- MSM0500064CLB
- TLBK-15
- TLBK15
