RAD5210-1 - Datasheet
MBA
Category Information

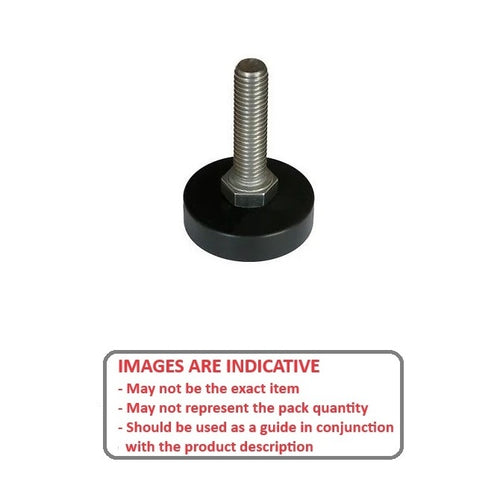

Mounts - Levelling Studded - Basic - Rigid AdjustersRigid Adjusters Basic Levelling Studded Mounts. Adjustable supports for all kinds of machinery.
- An expanded range may be available on special order. Please enquire.
- Mild steel bright zinc plated.
- Screwdriver cross recess in base.
- Use as mounting feet.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D)
30.0
mm
(Equiv. 1.181 in.) - Foot Height (C)
9.0
mm
(Equiv. 0.354 in.) - Thread Length (F) 40 mm
- Base Height (E) 9.0 mm
- Overall Height 49.0 mm
- Max Static Load 500 Kg
- Style 1
- Material Polypropylene
