MLM-127C-102-S4HY - Datasheet
MBA
Category Information

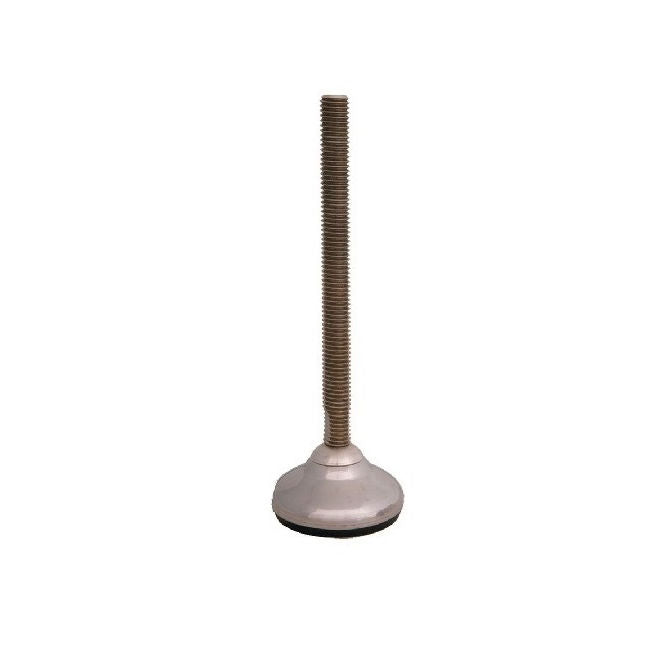

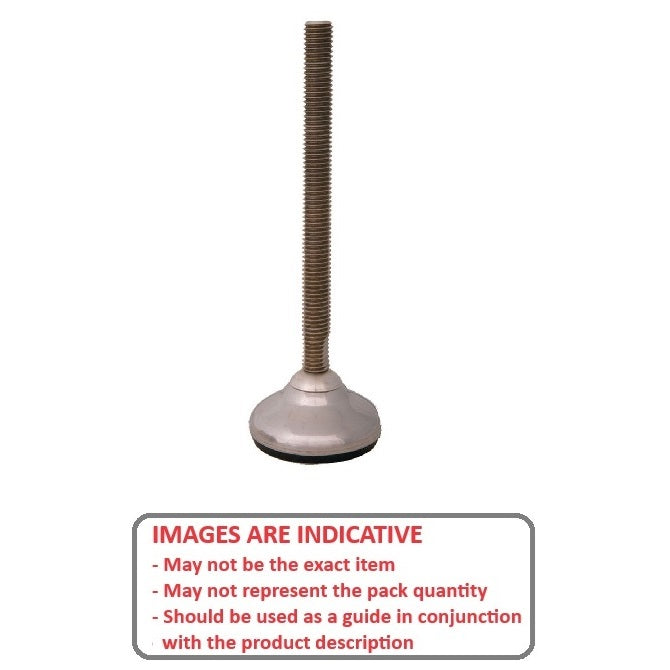

Mounts - Levelling Studded - Hygienic - 304 Stainless304 Stainless Hygienic Levelling Studded Mounts. Levelling adjusters. ANSI 304 stainless steel provides high corrosion resistance. Rounded polished base for fluid run-off during washdown applications.
- An expanded range may be available on special order. Please enquire.
- Rubber base is vulcanised to the housing and contains no voids for a completely hygienic seal.
- Full range of motion up to 10 degrees.
- Pivot provides secure footing and vibration control.
- Meets USDA requirements for food processing equipment.
Product Data

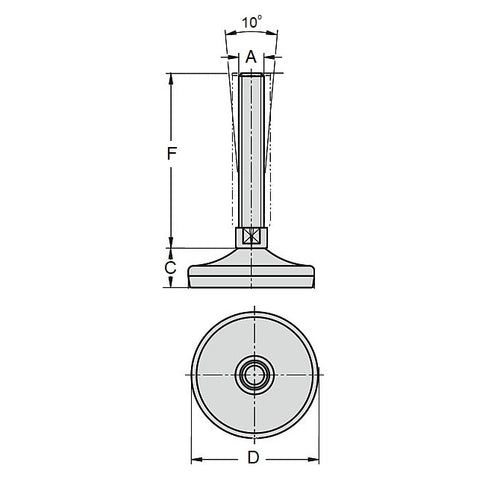

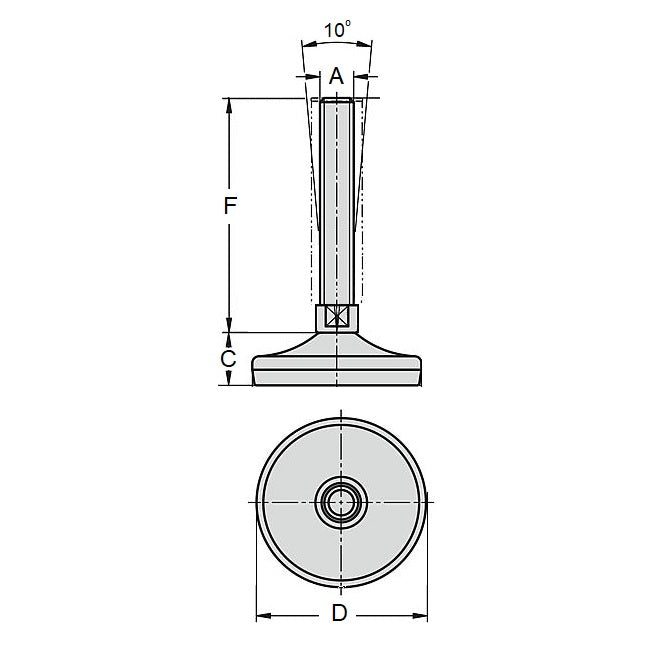

- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
59.9
mm
(Equiv. 2.358 in.) - Foot Height (C)
33.0
mm
(Equiv. 1.299 in.) - Thread Length (F) 101.6 mm
- Base Height (E) 33.0 mm
- Overall Height 134.6 mm
- Load Rating 500 Kg
- 10
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SX35
- SX-35
- MLM0500127C102S4
- MLM0500102127CS4
