AD-4250 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 50.0 mm
      (Equiv. 1.969 in.)
    • Thread (C) M42x1.5 (42.0mm)
    • Length (A) 241.0 mm
      (Equiv. 9.488 in.)
    • Shaft Size (D) 12.0 mm
    • Max. Effective Mass 4000 Kg
    • Max. Nm Per Cycle 500 Nm
    • Max. Nm Per Hour 150000 Nm
    • Max Impact Speed 4.5 m/s
    • Weight 1490 g
    • Body Length (B) 157.0 mm
    • Tip Diameter (C) 44.5 mm
    • Tip Length (E) 34.0 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

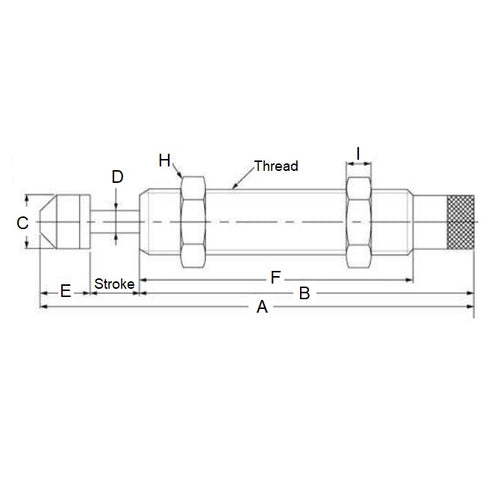

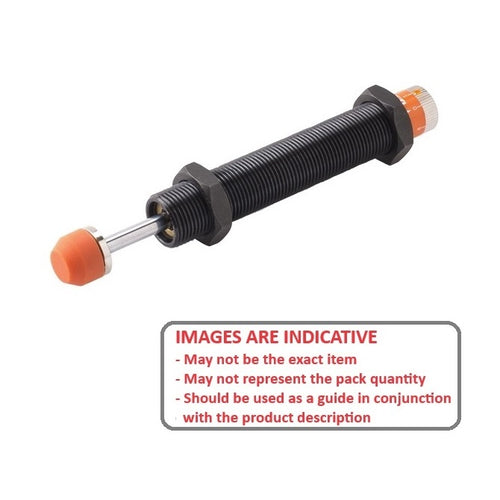

      AD-4250DiagramAD-4250Image
