AD-3650 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 50.0 mm
      (Equiv. 1.969 in.)
    • Thread (C) M36x1.5 (36.0mm)
    • Length (A) 247.0 mm
      (Equiv. 9.724 in.)
    • Shaft Size (D) 10.0 mm
    • Max. Effective Mass 1400 Kg
    • Max. Nm Per Cycle 300 Nm
    • Max. Nm Per Hour 100000 Nm
    • Max Impact Speed 3.0 m/s
    • Weight 1100 g
    • Body Length (B) 171.0 mm
    • Tip Diameter (C) 35.5 mm
    • Tip Length (E) 26.0 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

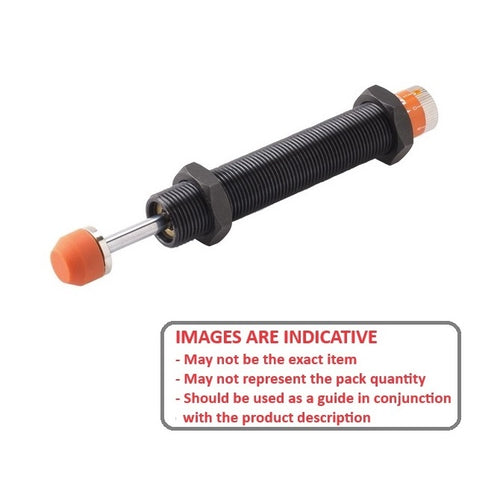

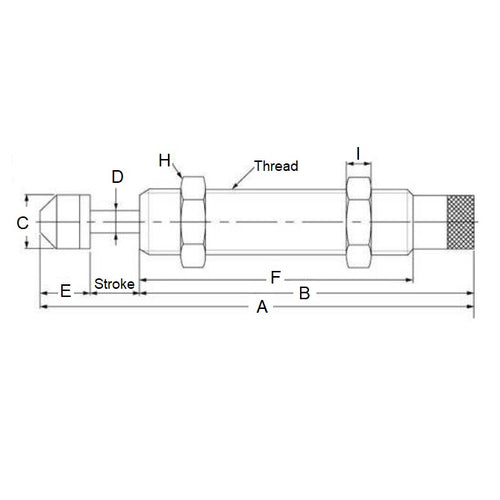

      AD-3650DiagramAD-3650Image
