AD-2550 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 50.0 mm
      (Equiv. 1.969 in.)
    • Thread (C) M25x1.5 (25.0mm)
    • Length (A) 248.6 mm
      (Equiv. 9.787 in.)
    • Shaft Size (D) 8.0 mm
    • Max. Effective Mass 720 Kg
    • Max. Nm Per Cycle 98 Nm
    • Max. Nm Per Hour 90000 Nm
    • Max Impact Speed 4.0 m/s
    • Weight 455 g
    • Body Length (B) 178.1 mm
    • Tip Diameter (C) 22.0 mm
    • Tip Length (E) 20.5 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

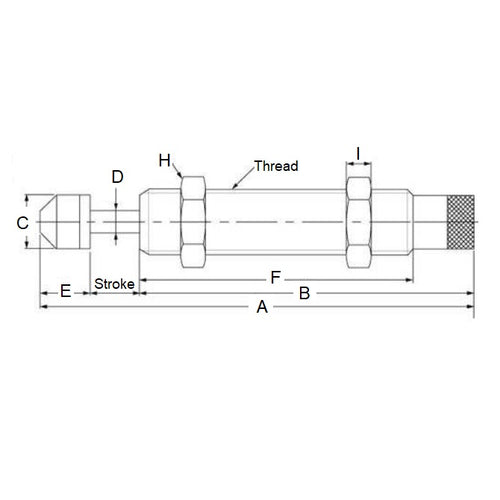

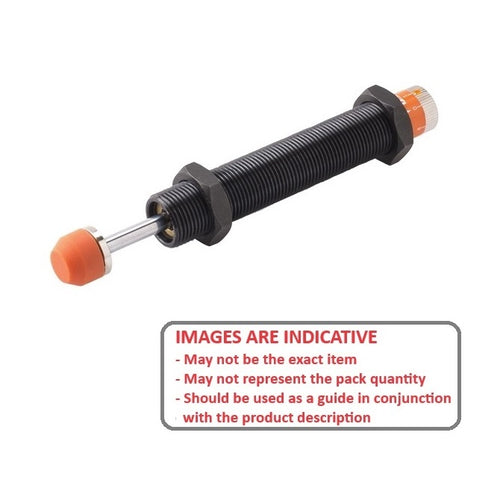

      AD-2550DiagramAD-2550Image
