Miniature Bearings Australia
NAST50ZZUUR - Datasheet
MBA
Category Information
Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data

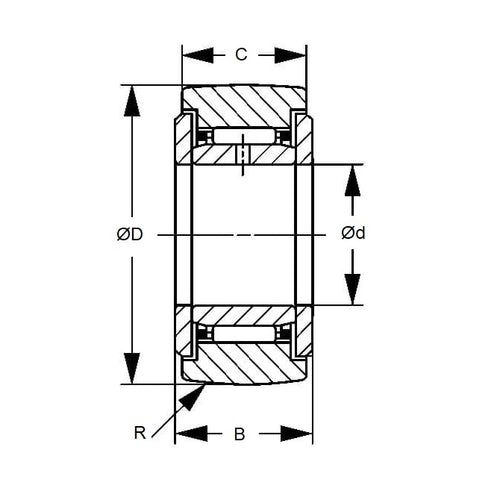

- ID (d)
:
50.00
mm
(Equiv. 1.969 in.) - OD (D)
90.00
mm
(Equiv. 3.543 in.) - Width (C)
25.80
mm
(Equiv. 1.016 in.) - Inner Ring Width (B) 26.00 mm
- OD Type Radius (500mm)
- Dynamic Load Rating 3970.00 kgf
- Static Load Rating 7310.00 kgf
- Closures Shields with Seal
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi NAST-50-ZZUUR
- IKO NAST50-ZZUUR
- NAST50ZZUUR
