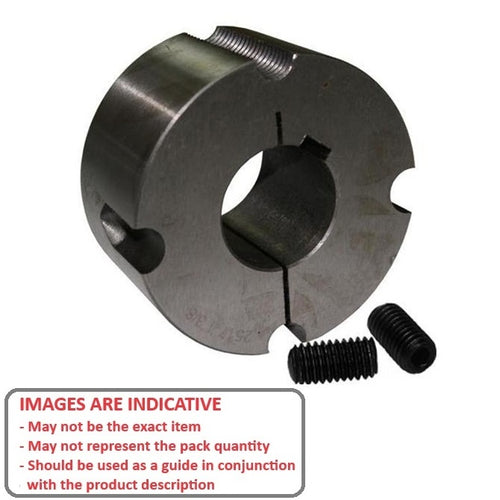

TLB-2517-0508 - Datasheet
MBA
Category Information
Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data

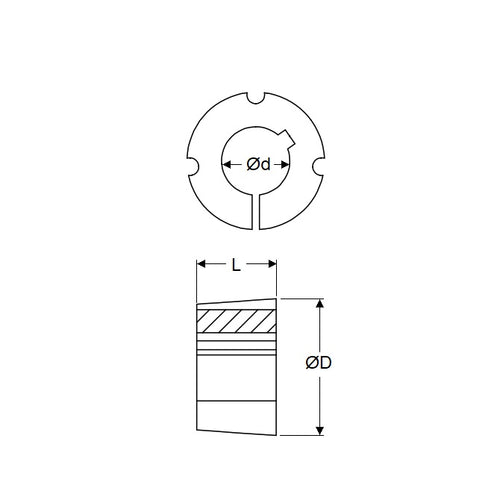

- Bore (d) : 50.800 mm
- Large End Dia. (D) 85.5 mm
- Length (L) 44.45 mm
- Taperlock Series 2517
- No of Screws 2
- Screw Size 1/2x1 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 57095K216
- TLB25172
- TLB-2517-2
