W0508-F-070-0158-K-C - Datasheet
MBA
Category Information

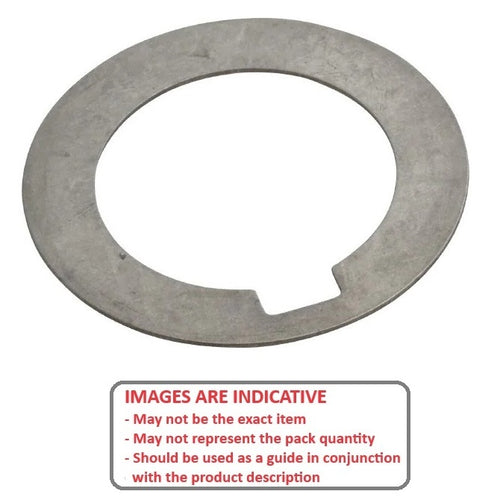

Spacers - ArborArbor Spacers. Flat arbor shim washers with keyway groove.
- Spacers with a notch or tab, fit snugly on keyed shafts to align and space gears, sprockets, and bearings.
- Often used to accurately space saw blades, cutters and other machinery.

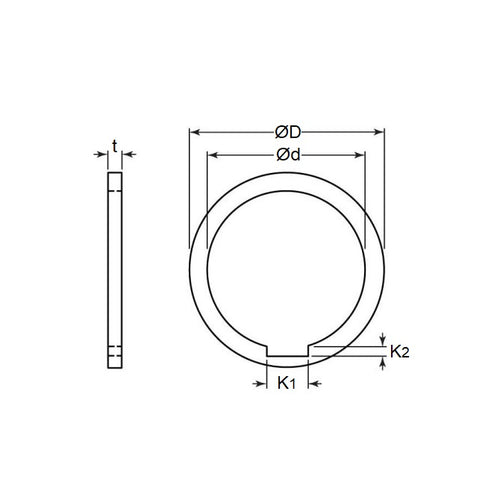

Product Data
- ID (d)
:
50.800
mm
+ 0.279 / - 0.000
(Equiv. 2 in.) - OD (D)
69.850
mm
+/- 0.0508
(Equiv. 2.75 in.) - Thickness / Length (T)
1.575
mm
+ /- 0.025
(Equiv. 0.062 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 3088A858
- PB24477
- PB-24477
