Miniature Bearings Australia
RR-188RS - Datasheet
MBA
Category Information

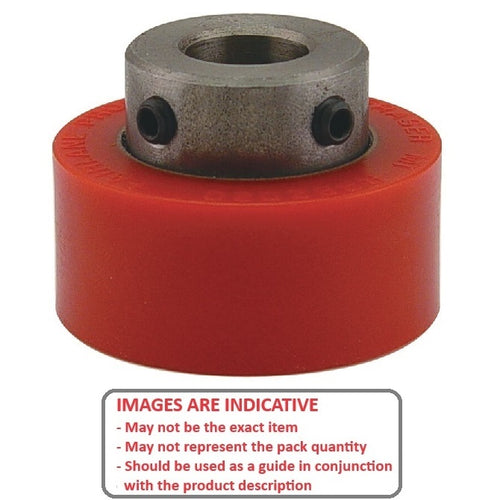

Rollers - Solid Shaft Mount - Coloured UrethaneColoured Urethane Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Blue colour may turn a shade of green when exposed to UV lighting
Product Data

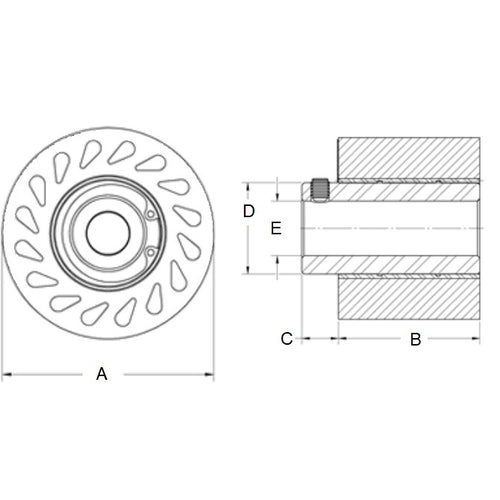

- Diameter (A)
:
50.80
mm
(Equiv. 2 in.) - Length (B)
49.28
mm
(Equiv. 1.94 in.) - Bore (E)
25.43 - 25.55
mm
(Equiv. 1.001 in.) - Hub Projection (C) 12.700
- Durometer 80
- Colour Red
- Material Urethane
Product Compliance and Data
Additional Resources
Cross References
- 2475K67-80A
- 2475K6780A
