Miniature Bearings Australia
RR-174RS - Datasheet
MBA
Category Information

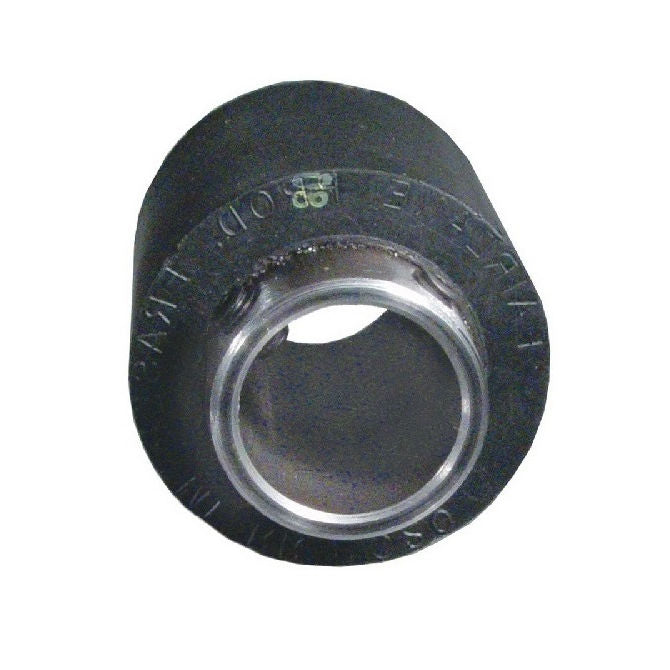

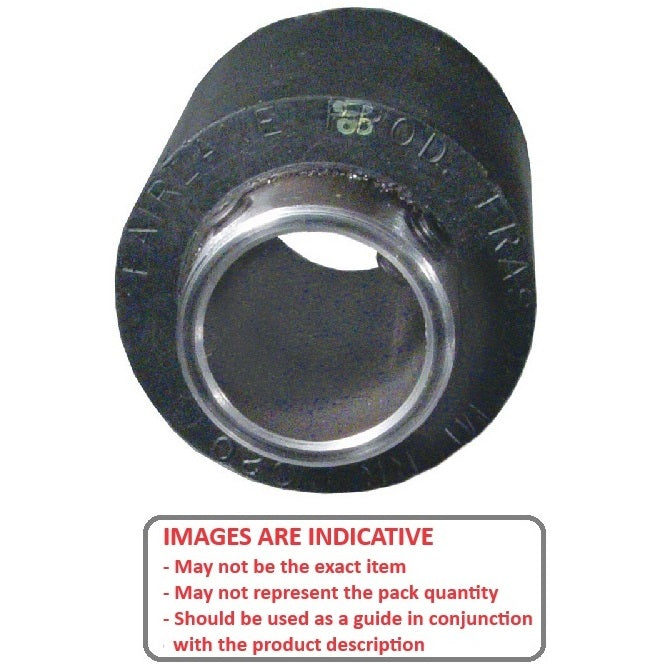

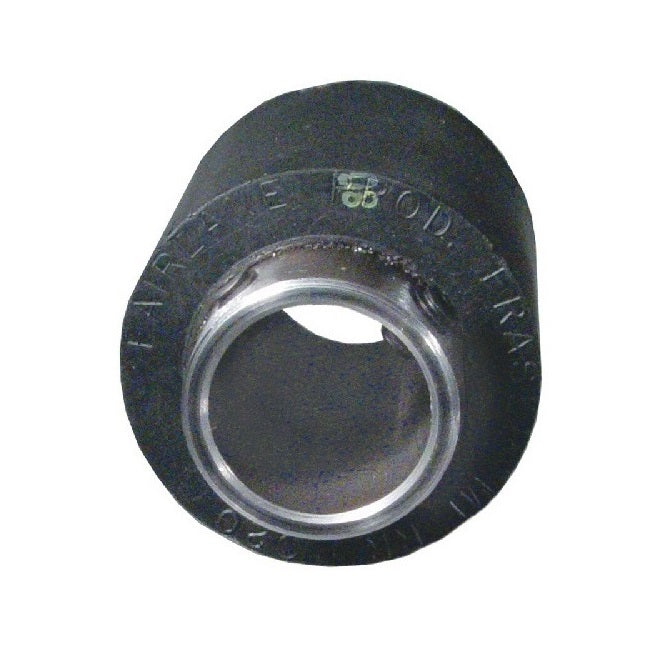

Rollers - Solid Shaft Mount - Black NeopreneBlack Neoprene Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
Product Data
- Diameter (A) : 50.80 mm
- Length (B) 49.28 mm
- Bore (E) 25.43 - 25.55 mm
- Hub Projection (C) 12.700
- Durometer 80
- Material Neoprene Rubber
