Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

AU63RS - Datasheet

MBA

Category Information

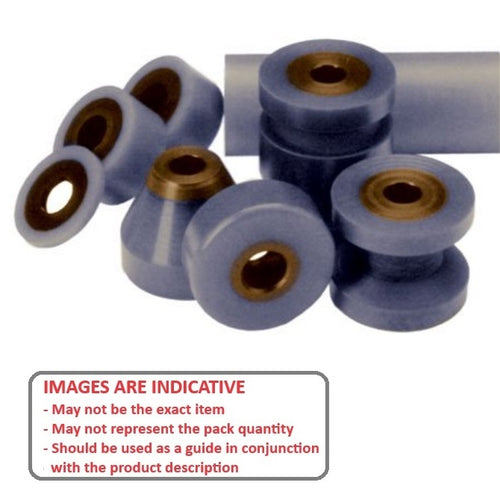

Rollers - Urethane Lengths

Urethane Lengths Rollers. Low cost alternative for making your own wheels, castors, rollers, sheaves etc. Urethane rod with dual hardness. Harder inner sleeve with softer outside for use as a roller.

  • Blue outer tyre 90A Durometer bonded to a hard brown 75D Durometer inner sleeve
  • This results in a hard anti friction bearing surface inside with a soft tyre outside
  • The roller can be cut and machined to suit your purposes
  • Testing for your application is recommended

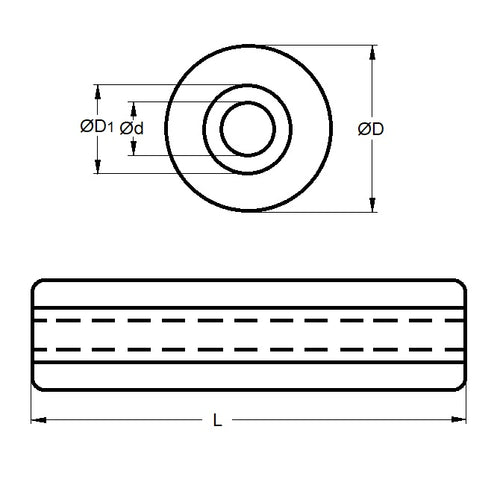

Product Data

  • Outside Diameter : 50.80 mm
    (Equiv. 2 in.)
  • Length 304.80 mm
    (Equiv. 12 in.)
  • Inside Diameter 9.52 mm
    (Equiv. 0.375 in.)
  • Hub Section Outside Diameter 38.1 mm
  • Material Polyurethane
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • AU-63
    • AU63
