Miniature Bearings Australia
RR-193RS - Datasheet
MBA
Category Information

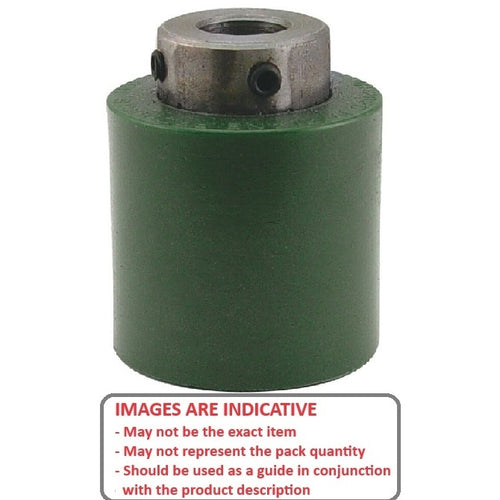

Rollers - Solid Shaft Mount - Coloured UrethaneColoured Urethane Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Blue colour may turn a shade of green when exposed to UV lighting
Product Data

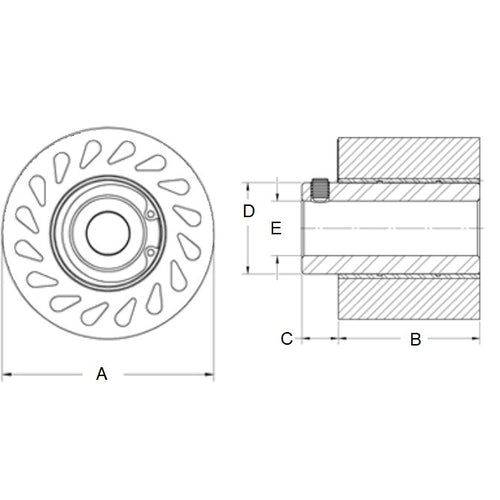

- Diameter (A)
:
50.80
mm
(Equiv. 2 in.) - Length (B)
23.37
mm
(Equiv. 0.92 in.) - Bore (E)
15.90 - 16.03
mm
(Equiv. 0.626 in.) - Hub Projection (C) 12.700
- Durometer 60
- Colour Blue
- Material Urethane
Product Compliance and Data
Additional Resources
Cross References
- 2475K63-60A
- 2475K6360A
