ES-5080-2286-45-M - Datasheet

MBA

Category Information

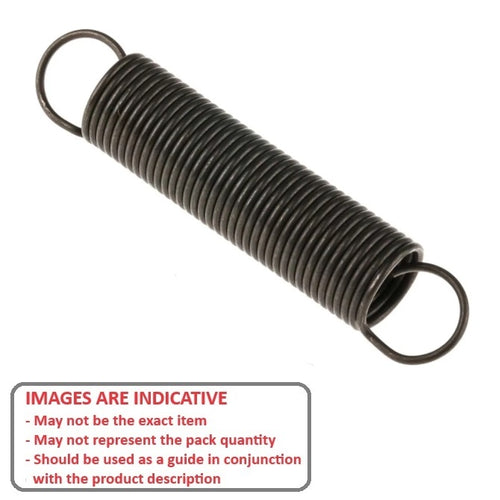

Springs - Extension - Music Wire

Music Wire Extension Springs. Carbon spring steel, zinc plated selection.

  • Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
  • Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
  • This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
  • Zinc Plated Spring Steel not recommended for applications exceeding 121 Deg C (250 Deg F).

Product Data

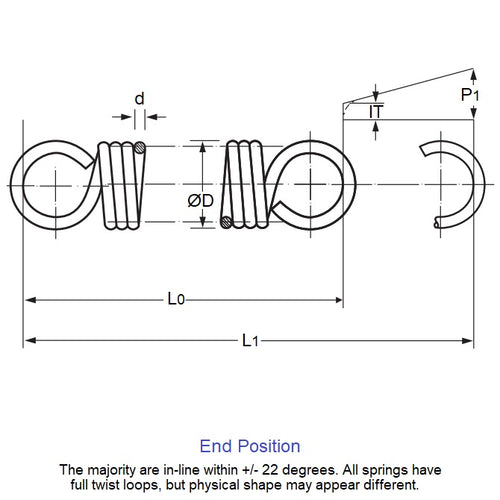

  • OD (D0) : 50.80 mm
    (Equiv. 2 in.)
  • Overall Length (L0) 228.6 mm
    (Equiv. 9 in.)
  • Wire Diameter (d) 4.50 mm
    (Equiv. 0.177 in.)
  • Max. Extension (L1) 577.340 mm
  • Spring Rate 1.156 N/mm
  • Initial Tension (IT) 37.2 N
  • Load at L1 413.460 N
  • End Type Closed - Full Loop
  • Material Steel
Country of Origin: AU

Product Compliance and Data

Additional Resources

Cross References

  • 9654K929
  • ASI E2000-177-9000
  • E20001779000
