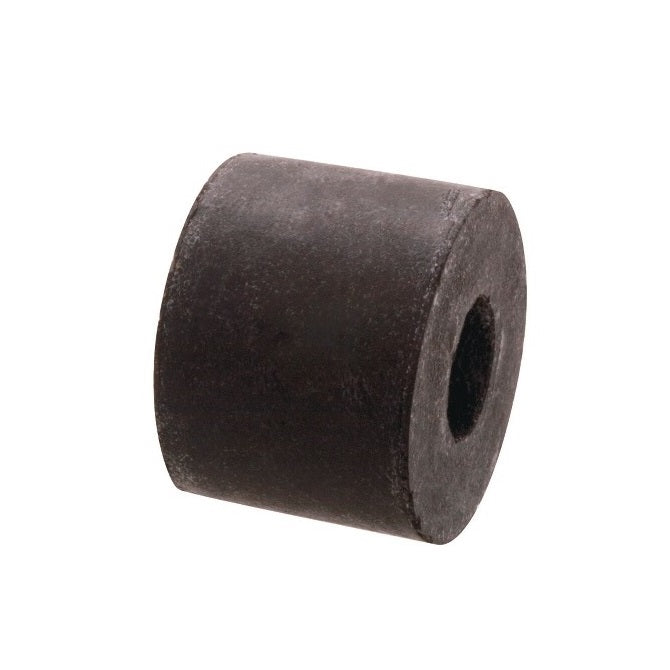

CSN-0508-064 - Datasheet
MBA
Category Information
Mounts - Bumpers - Neoprene SpringsNeoprene Springs Bumpers Mounts. Neoprene elastomer springs have proven to be the safest, most efficient material for punching, stamping and drawing dies.
- An expanded range may be available on special order. Please enquire.
- Major advantages include high loads, increased durability, better performance, no maintenance and long life.
Product Data
- Outside Diameter (A)
:
50.80
mm
(Equiv. 2 in.) - Inside Diameter (B)
16.8
mm
(Equiv. 0.661 in.) - Free Length (L)
63.5
mm
(Equiv. 2.5 in.) - Spring Rate 259.5 N/mm Deflection +/- 20 Perc
- Max. Rec. Deflection 22.10 mm
- Approx. Load at Max Deflection 484.1 Kg
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- BES-3553
- BES3553
