RRN-200 - Datasheet

MBA

Category Information

Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel

Carbon Steel Heavy Duty Spiral Rings Internal Retaining Rings. Includes AHI / WHM / AS3215 / RRN / MIL-R-27426B2 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Heavy duty design for use with NAS669-670 deep grooves in applications like double row and tapered roller bearings.
  • Requires no tools for removal.
  • Equivalent to Associated Spring: AHI, Smalley: WHM, Spirolox and Ramsey: RRN, Aerospace AS3215, MIL-R-27426B2

Product Data

  • Housing Bore (B) : 50.80 mm
  • Clip Thickness (T) 1.58 mm +/- 0.08
    (Equiv. 0.062 in.)
  • Groove Dia. (Dg) 53.90 mm
  • Approx. Loose Circlip OD (Dr) 54.20 mm + 0.51 / - 0.00
  • Radial Wall (S) Approx. 4.01 mm +/- 0.10
  • Groove Width (W) 1.78 mm +/- 0.13
  • Approx. Loose Clip ID 46.18 +/- 0.05
  • Groove Depth (d) 1.55
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91985A251
  • Associated Spring® AHI-200
  • Huyett® RRN-200
  • Smalley® WHM-200
  • WHM200
  • AHI200
View full details

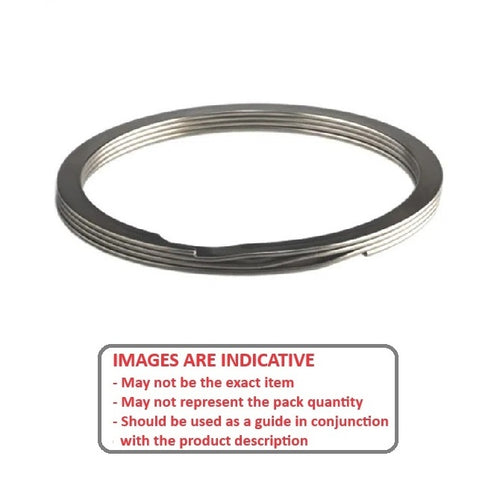

RRN-200DiagramRRN-200Image
