NCF70RS - Datasheet

MBA

Category Information

Cam Followers - Bronze Bushing Self Lubricating

Bronze Bushing Self Lubricating Cam Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 50.800 mm
      (Equiv. 2 in.)
    • Length 79.375 mm
      (Equiv. 3.125 in.)
    • Thread (F) 7/8-14 UNF
    • Thread Length (E) 25.400 mm
    • Roller Width (B) 28.575 mm
    • Material Steel and Bronze
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • NCF-70
      • NCF70
      View full details

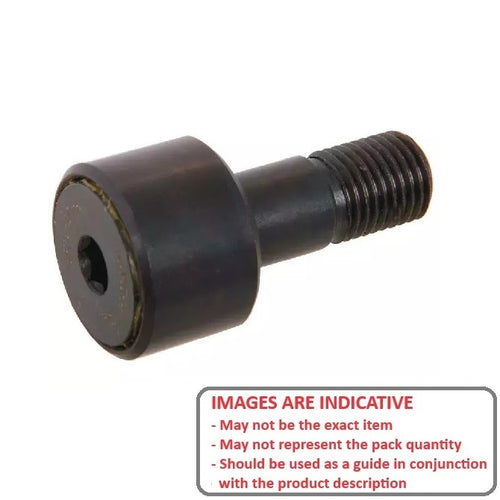

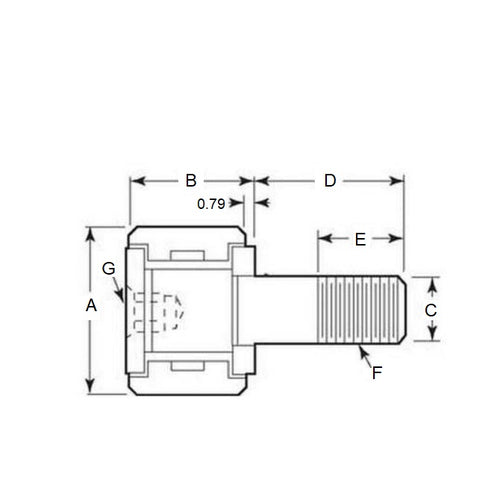

      NCF70RSDiagramNCF70RSImage
