Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

RR-1504RS - Datasheet

MBA

Category Information

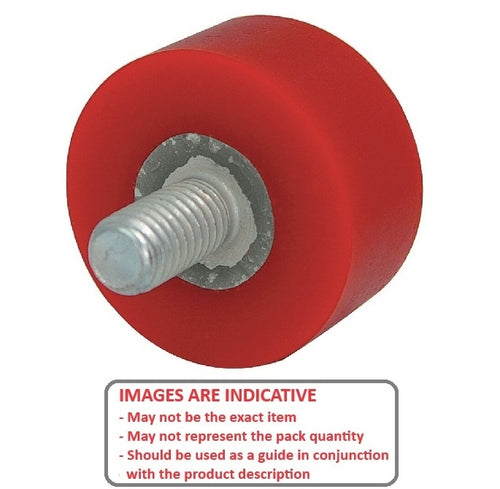

Bumpers - Cylindrical Male Thread - Standard

Standard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers

    Product Data

    • Diameter (A) : 50.800 mm
      (Equiv. 2 in.)
    • Height (B) 50.800 mm
      (Equiv. 2 in.)
    • Thread 5/16-18 UNC (7.94mm)
    • Thread Length 22.225 mm
    • End Flat with radiused Edges
    • Durometer 60A
    • Colour Black
    • Material Polyurethane
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details

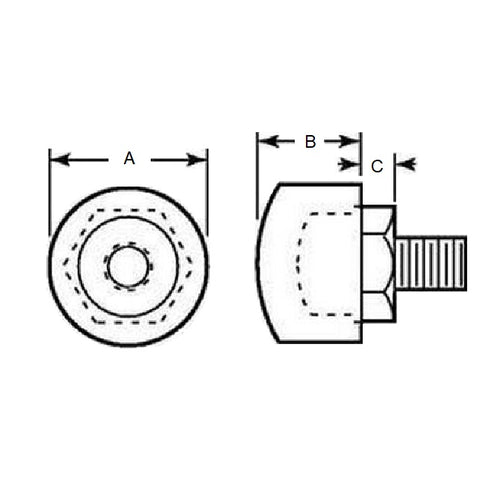

      RR-1504RSDiagramRR-1504RSImage
