ED4RS - Datasheet

ACE

Category Information

Shock Absorbers - Small Hydraulic Adjustable

Small Hydraulic Adjustable Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 50.8 mm
      (Equiv. 2 in.)
    • Thread (C) 1.3/8-12 UNF
    • Type Spring
    • Length (A/F) 222.00 / 137.92 mm
    • Shaft Diameter (D) 9 mm
    • Max. Shock Force 1134 KG
    • Max. Propelling Force 227 KG
    • Nom. Coil Spring Force Exten 2 KG
    • Nom. Coil Spring Force Compres 6 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ED-4
      • ED4
      View full details

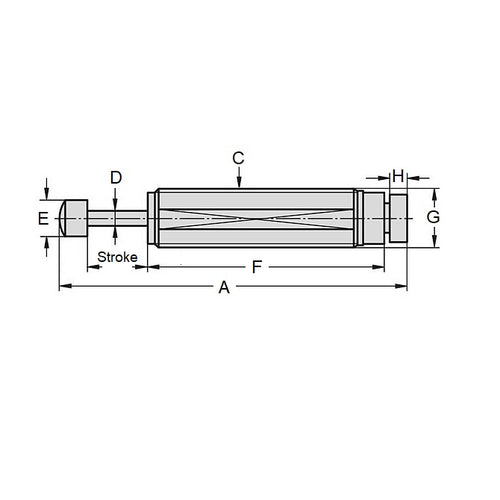

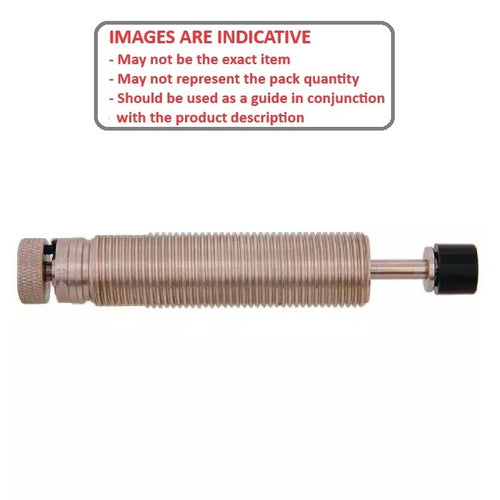

      ED4RSDiagramED4RSImage
