CMB051-41-095C-R60 - Datasheet
MBA
Category Information

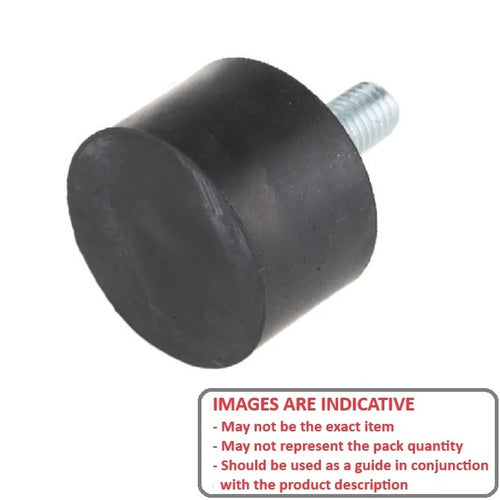

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

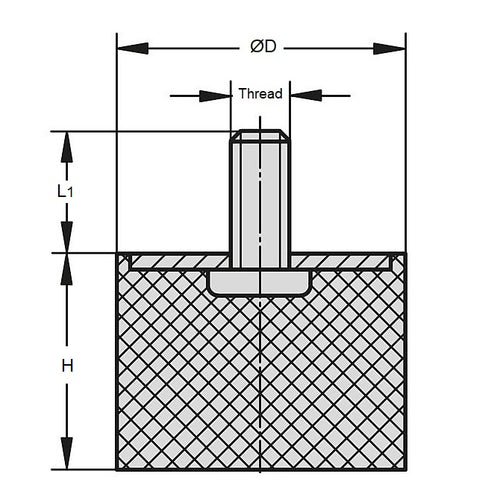

- Nom. Body Diameter (D) : 50.8 mm
- Body Height (H) 41.3 mm
- Thread Size (G) 3/8 UNC (16 TPI)
- Shore Hardness 60
- Thread Length (L1) 15.9 mm
- Compression Load 74.8 Kg
- Max Shear Load 9.63 Kg
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® VM-165-1
- VM1651
