WC415RS - Datasheet

MBA

Category Information

Castors - Stud - General Purpose

General Purpose Stud Castors. This is the main category in this series

    Product Data

    Deleted Item. Available while stocks last.

    Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

    • Wheel diameter : 50.8 x 20.64 mm
      (Equiv. 2 in.)
    • Type Swivel
    • Approx. Load Capacity 34
    • Overall Height 63.5 kg
    • Stud Type Threaded
    • Stud Thread 5/16-18 UNC (7.94mm) mm
    • Stud Length 25.400
    • Material Soft Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • WC415
      • WC-415
      View full details

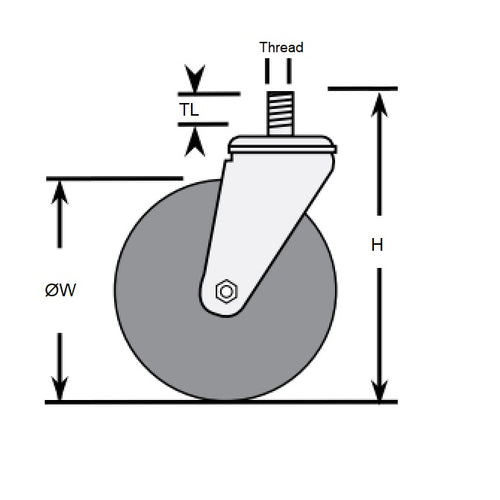

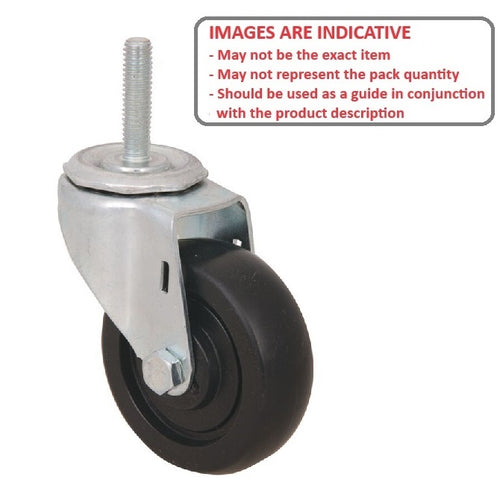

      WC415RSDiagramWC415RSImage
