CMBC050-50-080M - Datasheet
MBA
Category Information

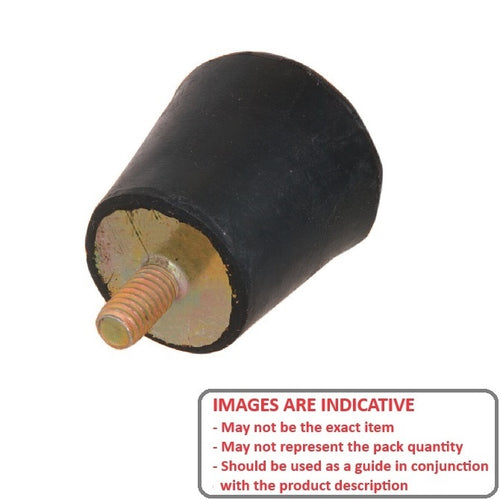

Mounts - Buffer - Male - ConicalConical Male Buffer Mounts. Rubber hardness 60 Duro Standard unless otherwise noted. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

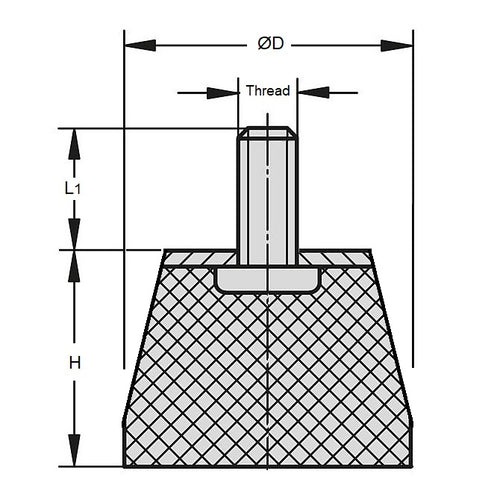

- Nom. Body Diameter (D)
:
50.00
mm
(Equiv. 1.969 in.) - Body Length (H)
50.00
mm
(Equiv. 1.969 in.) - Thread Size M8x1.25
- Shore Hardness 60
- Thread Length (L1) 23.0 mm
- Max Shear Load 900 Kg (lbs)
- Configuration Cone - Male
- Other Info 85.00
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-VP5050-23
- CVP505023
