TAD5011-25-1 - Datasheet
MBA
Category Information

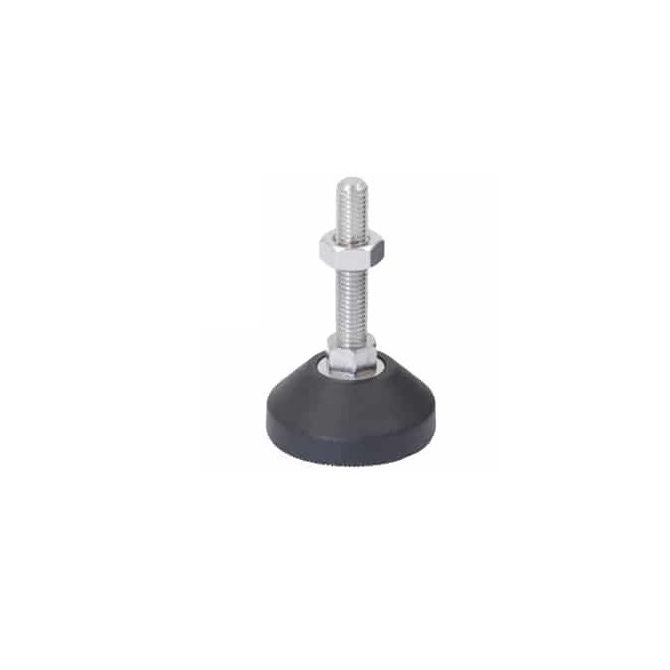

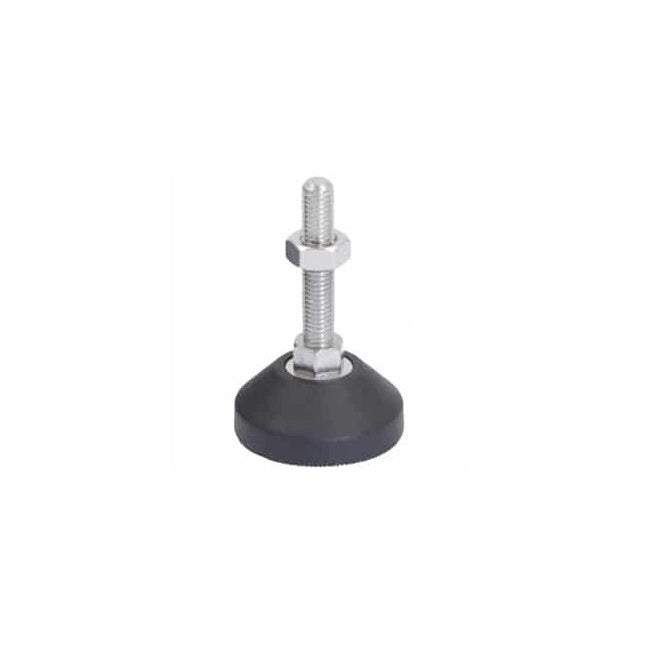

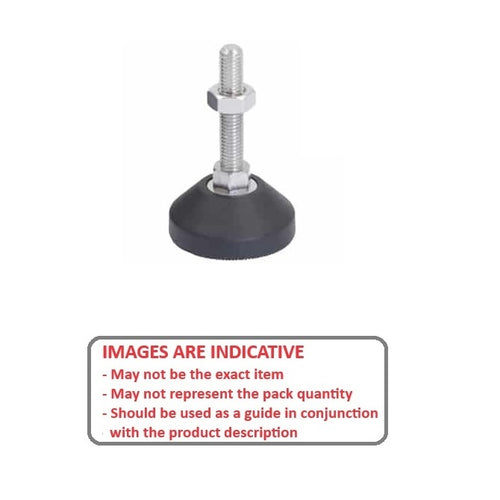

Mounts - Levelling Studded - Basic - Tilt AdjustersTilt Adjusters Basic Levelling Studded Mounts. Adjustable supports for all kinds of machinery. Mounting feet levelers.
- An expanded range may be available on special order. Please enquire.
- Stem: Mild steel bright zinc plated.
- Base: Polythene or Polypropylene.
- Angle of Tilt: 25o from perpendicular.
- Hexagon Nut: 12mm A/F.
- Standard colour: Black.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (A) : M8 (8x1.25mm)
- Base Diameter (D)
25.0
mm
(Equiv. 0.984 in.) - Foot Height (C)
20.0
mm
(Equiv. 0.787 in.) - Thread Length (F) 25.0 mm
- Base Height (E) 20.0 mm
- Overall Height 45.0 mm
- Max Static Load 50 Kg
- Material Polythene
