CFF050-60-100M-R60 - Datasheet
MBA
Category Information

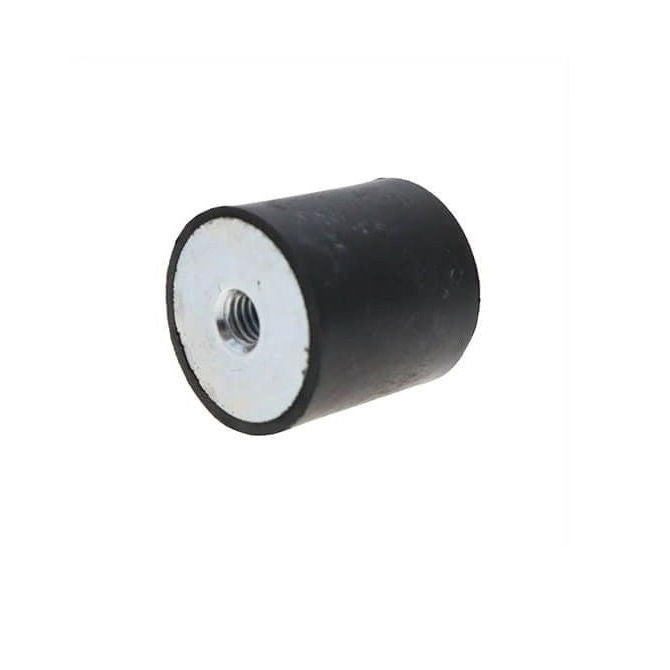

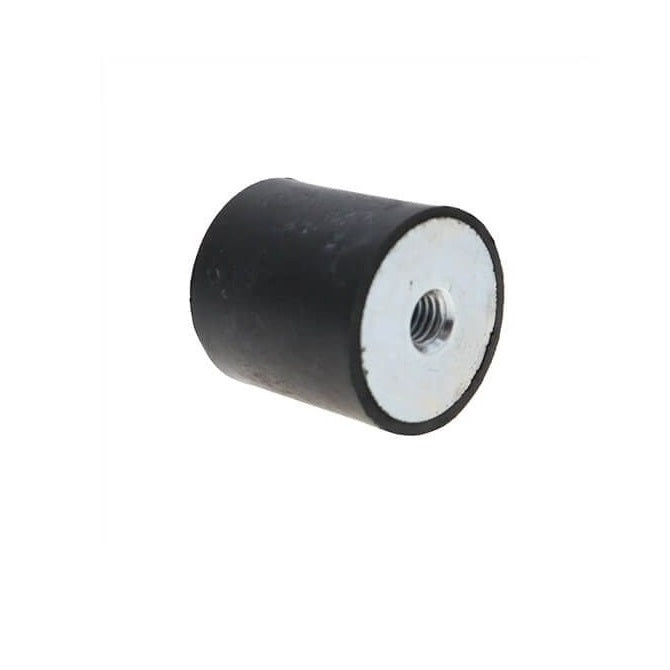

Mounts - Bobbin - FemaleFemale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D)
:
50.0
mm
(Equiv. 1.969 in.) - Body Height (H)
60.0
mm
(Equiv. 2.362 in.) - Thread Size M10x1.5
- Shore Hardness 60
- Compression Load 80 (171) Kg (lbs)
- Deflection 5.4 mm
- Configuration Female to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 5060FF1060
- 5060FF10-60
