CMF050-50-100M30-R60 - Datasheet
MBA
Category Information

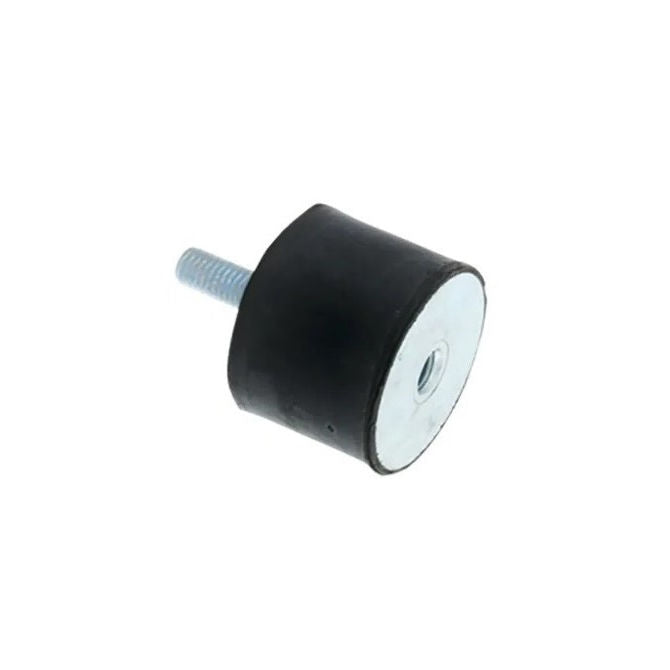

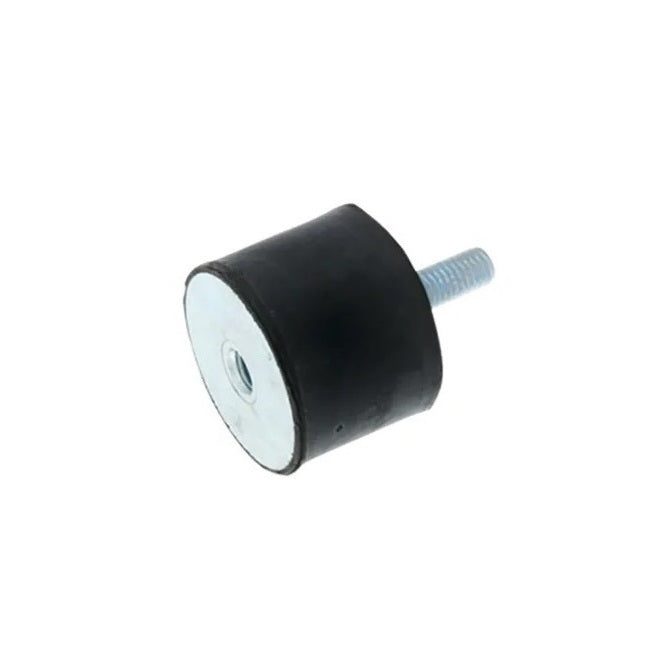

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Body Diameter (D)
:
50.0
mm
(Equiv. 1.969 in.) - Body Height (H)
50.0
mm
(Equiv. 1.969 in.) - Thread Size M10x1.5
- Shore Hardness 60
- Thread Length/Depth (L1/L2) 30.0 / 10.0 mm
- Compression Load 25 (54) Kg (lbs)
- Deflection 4.5 mm
- Max Shear Load 14.3 (31.5) Kg (lbs)
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Trelleborg 20-01276
- 2001276
- BZY105050
- B-ZY-10-50-50
