CMF050-40-100M-R60 - Datasheet

MBA

Category Information

Mounts - Bobbin - Male to Female

Male to Female Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 50.0 mm
  • Body Height (H) 40.0 mm
  • Thread Size M10x1.5
  • Shore Hardness 60
  • Thread Length/Depth (L1/L2) 25.0 / 12.0 mm
  • Compression Load 94 (201) Kg (lbs)
  • Deflection 3.5 mm
  • Max Shear Load 18.4 (40.6) Kg (lbs)
  • Configuration Male to Female
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • Trelleborg® 20-00578
  • B-ZY-10-50-40
  • BZY105040
  • 2000578
View full details

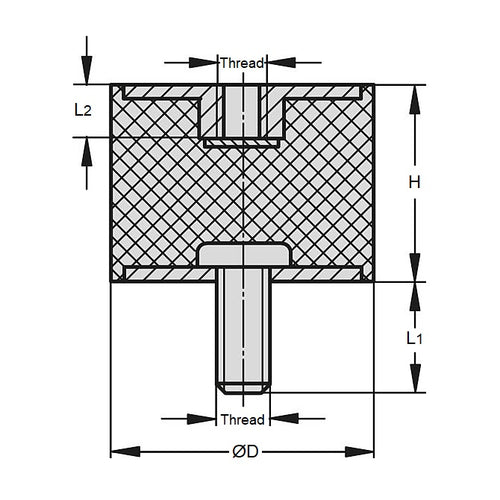

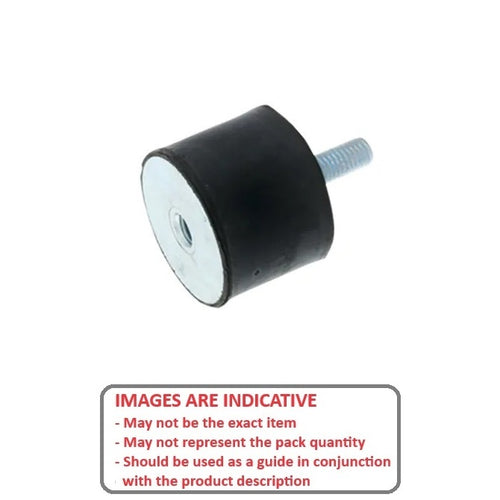

CMF050-40-100M-R60DiagramCMF050-40-100M-R60Image
