CMM050-35-100M-R35 - Datasheet

MBA

Category Information

Mounts - Bobbin - Male

Male Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 50.0 mm
    (Equiv. 1.969 in.)
  • Body Height (H) 35.0 mm
    (Equiv. 1.378 in.)
  • Thread Size M10x1.5
  • Shore Hardness 35
  • Thread Length (L1) 25.0 mm
  • Deflection 3.0 mm
  • Configuration Male to Male
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • AVI 5035MM25-35-M10
  • 5035MM2535M10
View full details

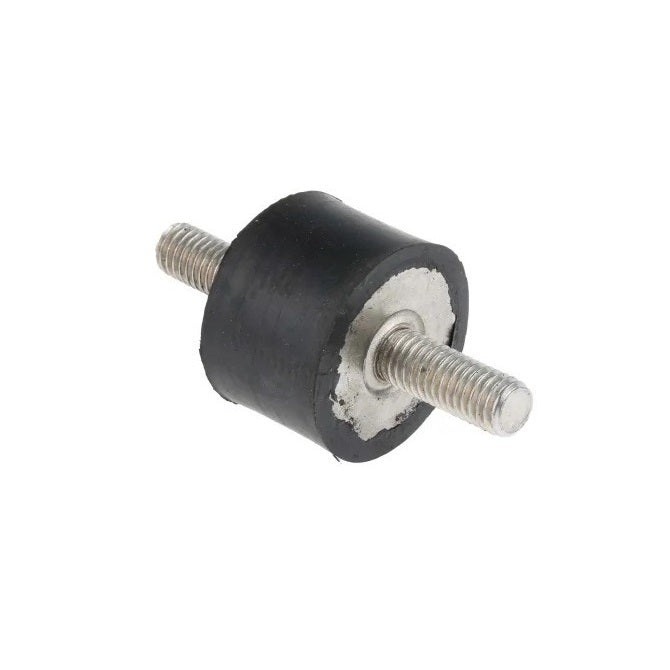

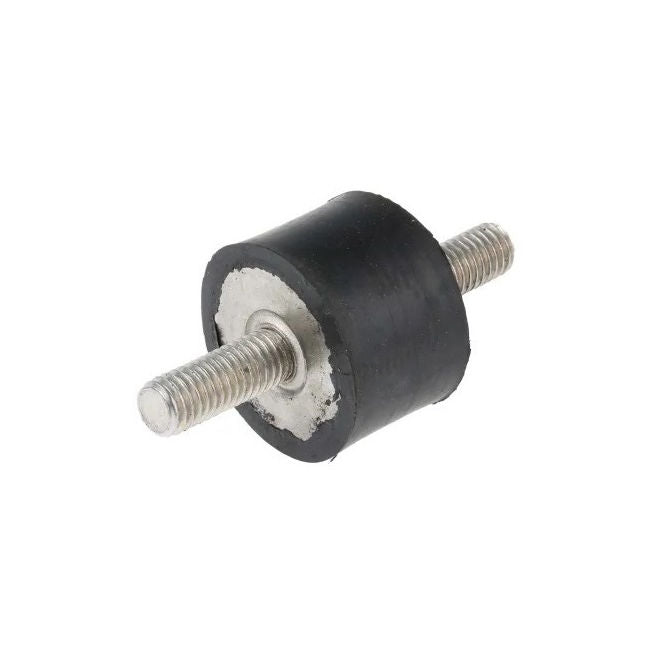

CMM050-35-100M-R35DiagramCMM050-35-100M-R35Image
