CFB050-30-120M-R45 - Datasheet
MBA
Category Information

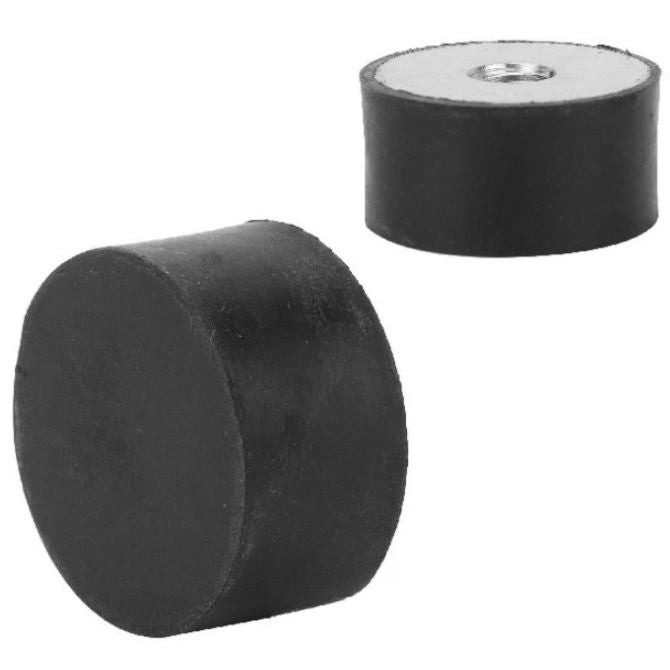

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D)
:
50.0
mm
(Equiv. 1.969 in.) - Body Height (H)
30.0
mm
(Equiv. 1.181 in.) - Thread Size M12x1.75
- Shore Hardness 45
- Compression Load 252 Kg (lbs)
- Deflection 7.5 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 5030FFB12-45
- 5030FFB1245
