CMF050-20-100M-R60 - Datasheet
MBA
Category Information

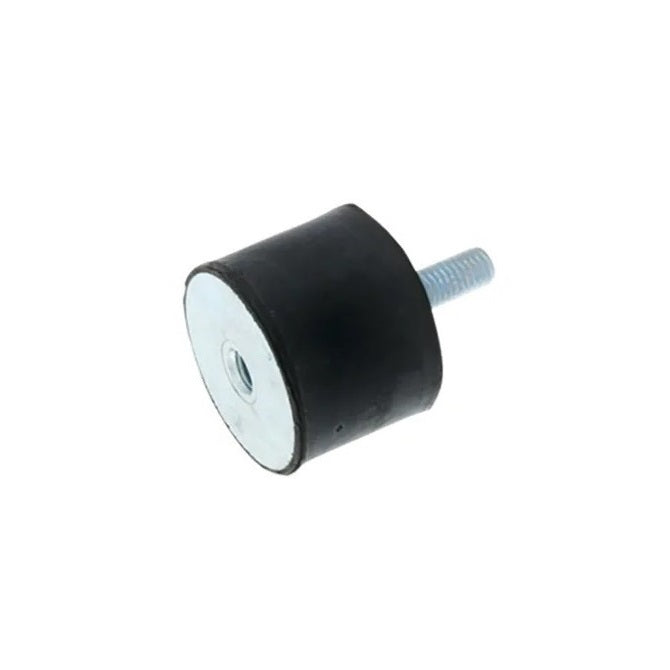

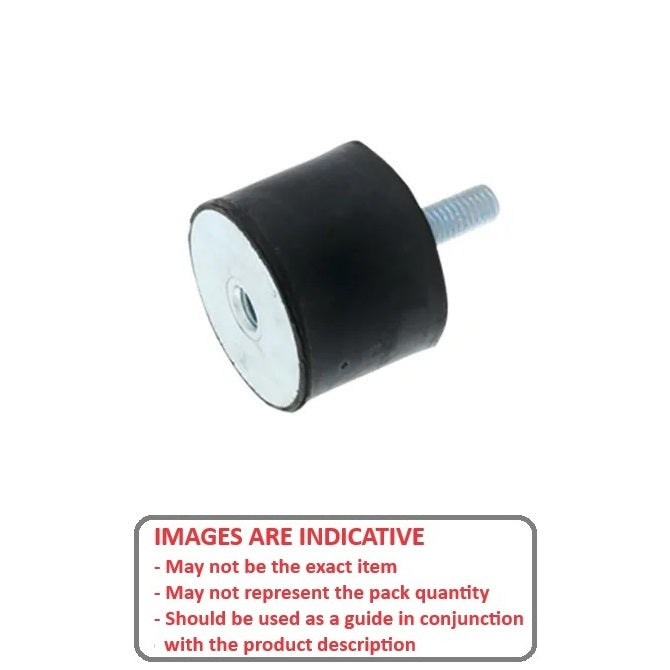

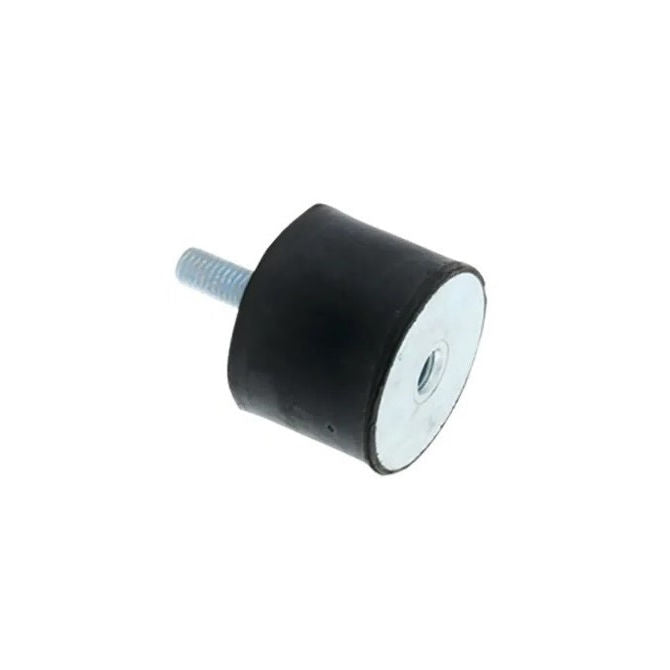

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

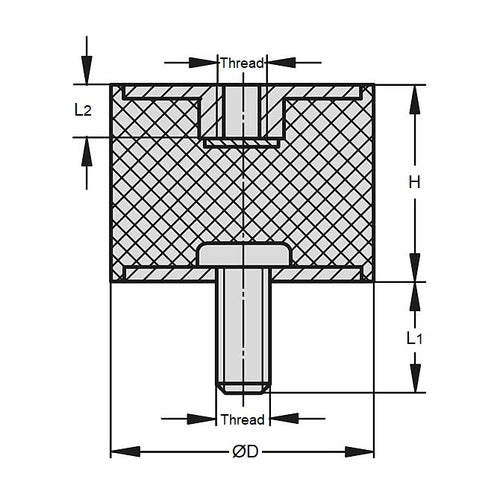

- Nom. Body Diameter (D)
:
50.0
mm
(Equiv. 1.969 in.) - Body Height (H)
20.0
mm
(Equiv. 0.787 in.) - Thread Size M10x1.5
- Shore Hardness 60
- Thread Length/Depth (L1/L2) 28.0 / 10.0 mm
- Compression Load 164 (351) Kg (lbs)
- Deflection 1.5 mm
- Max Shear Load 20.4 (45) Kg (lbs)
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Trelleborg 20-01273
- 2001273
- BZY105020
- B-ZY-10-50-20
