ACE1009M2RS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

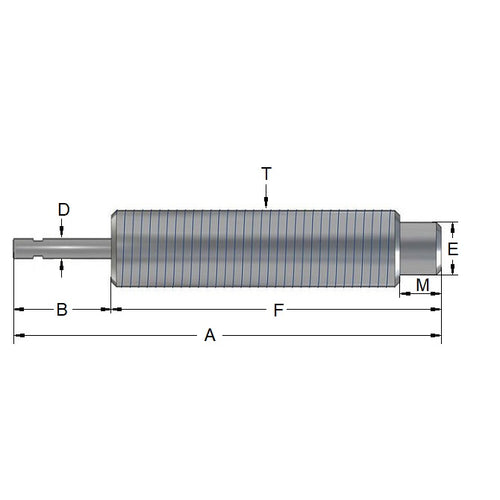

    • Stroke : 5.0 mm
      (Equiv. 0.197 in.)
    • Thread (T) M6x0.5
    • Length (A/F) 36.00 / 21.10 mm
      (Equiv. 1.417 in.)
    • Shaft Diameter (D) 2.00 mm
    • Effective Weight 0.79 - 4.08 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE1009M2
      • ACE-1009M2
