PLIT-060-127C-52-LKP-C - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Steel - With Locking Slot

With Locking Slot Steel Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : 1/2-13 UNC (12.7mm)
    • Overall Length (A) 51.7 mm
      (Equiv. 2.035 in.)
    • Initial End Force 0.1 N
    • Final End Force 0.3 N
    • Tip Diameter (C) 6.0 mm
    • Tip Length (D) 6.0 mm
    • Hex Height (F) 8.0 mm
    • Knob Diameter (J) 25.0 mm
    • Hex Size (K) 14.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-541
      • KBP541
      View full details

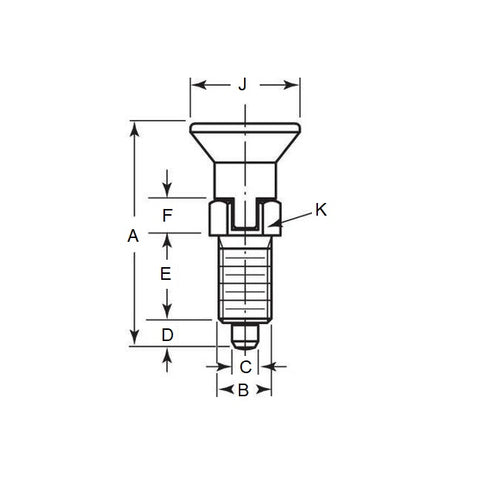

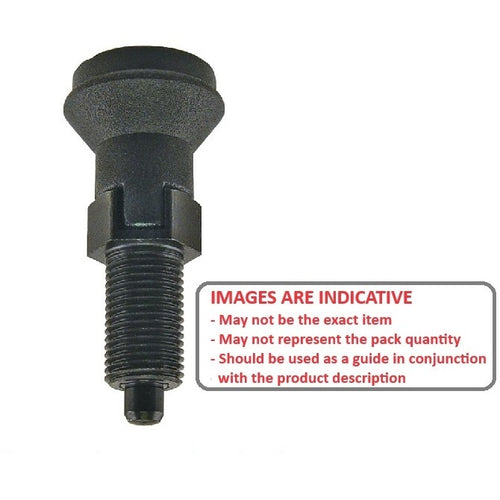

      PLIT-060-127C-52-LKP-CDiagramPLIT-060-127C-52-LKP-CImage
