PLIT-060-127C-52-KP-C - Datasheet
MBA
Category Information

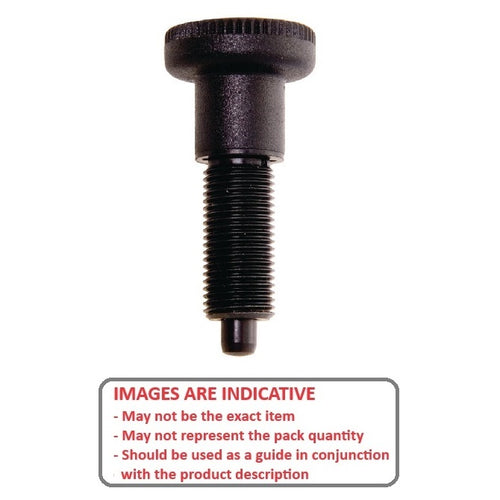

Plungers - Indexing Pull Knob - Steel - StandardStandard Steel Indexing Pull Knob Plungers. With thermoplastic knob
Product Data

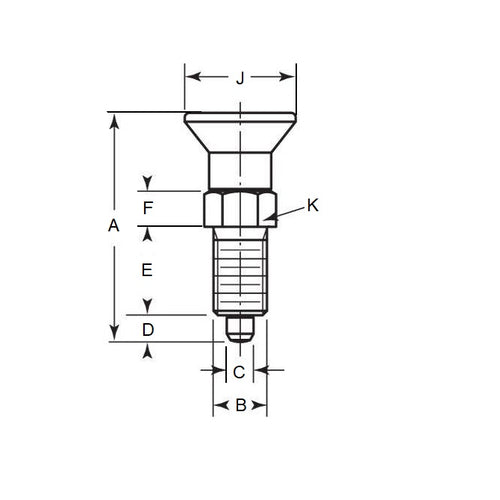

- Thread (B) : 1/2-13 UNC (12.7mm)
- Overall Length (A)
51.6
mm
(Equiv. 2.031 in.) - Initial End Force 0.1 N
- Final End Force 0.3 N
- Tip Diameter (C) 6.0 mm
- Tip Length (D) 6.0 mm
- Hex Height (F) 8.0 mm
- Knob Diameter (J) 25.0 mm
- Hex Size (K) 14.0
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KBP-501
- KBP501
