RPO-059-060-C - Datasheet
MBA
Category Information

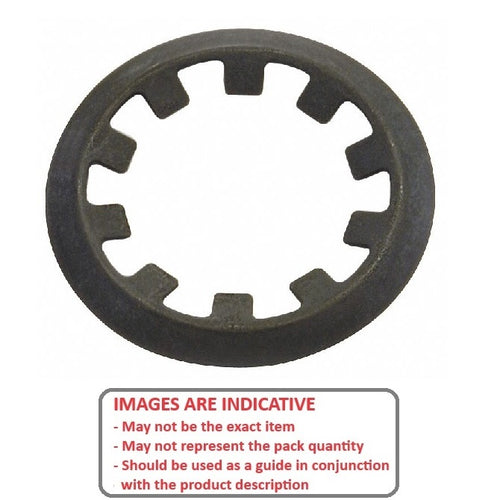

Retaining Rings - Push On - Carbon SteelCarbon Steel Push On Retaining Rings. M1465 / DTX / Seeger ZA and KS.
- An expanded range may be available on special order. Please enquire.
- Thrust load shown is calculated for ideal conditions with mild steel shaft.
- If no thrust load is shown, testing is suggested.
Product Data
- Min shaft size (s1) : 5.98 mm
- Max Shaft Size (s2) 6.00 mm
- Outside diameter (D1) 11.00 mm
- Min shaft extension (n1) 3.00 mm
- Height (H) Max. 1.50 mm
- Material Thickness (t) 0.25 mm
- Approx. Thrust Load 24 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor® DKS-006
- Huyett® DTX-006
- NoCor® DTX-006
- DTX006
- M1465-0060
- M14650060APP
- M1465-0060APP
- DKS006
