CP-059-318-32-048-R1-AC - Datasheet
MBA
Category Information

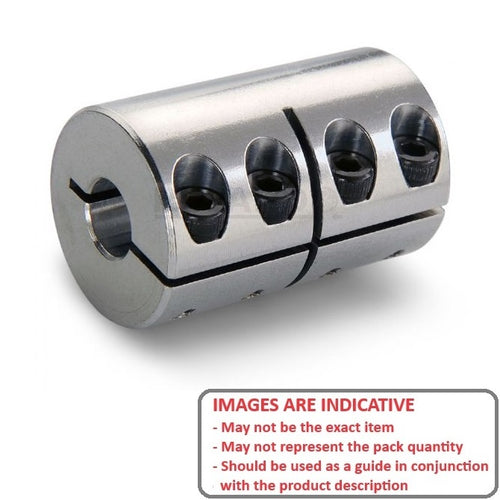

Couplings - Rigid - Clamp - 1 Piece - SteelSteel 1 Piece Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.
Product Data

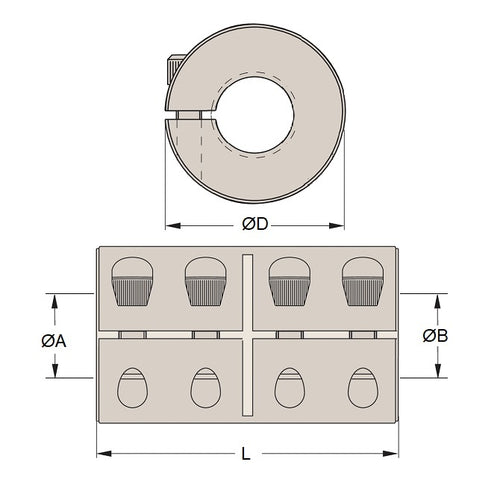

- Bore (b1) : Pilot Bore 5.969 mm
- Bore (b2)
12.700
mm
(Equiv. 0.5 in.) - OD (D)
31.750
mm
(Equiv. 1.25 in.) - Length (L) 47.63 mm
- Screw 8-32 x 9.52 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- CC-150
- CC150
