AR204RS - Datasheet

MBA

Category Information

Leadscrew - Nuts - Imperial - Acme - Bronze

Bronze Acme Imperial Nuts Leadscrew. Acme Leadscrew Nuts - Use with Acme Leadscrew thread and flanges for mounting

  • An expanded range may be available on special order. Please enquire.
  • Nut only. Match with appropriate leadscrew.

Product Data

  • Screw Outside Diameter : 15.875 mm
    (Equiv. 0.625 in.)
  • Number of Threads Per Inch 8
  • Number of Starts 1
  • Lead 3.175 mm
  • External Nut Mounting Thread 15/16-16
  • Direction Right Hand
  • Overall Length 25.40 mm
  • Thread Length 12.70 mm
  • Nut Diameter 28.45 mm
  • Material Bronze
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • AR204
    • AR-204
    View full details

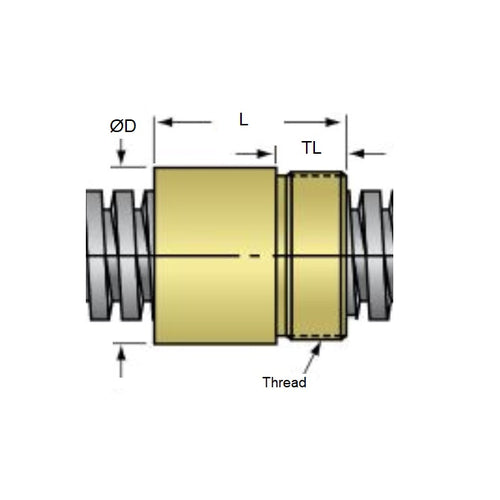

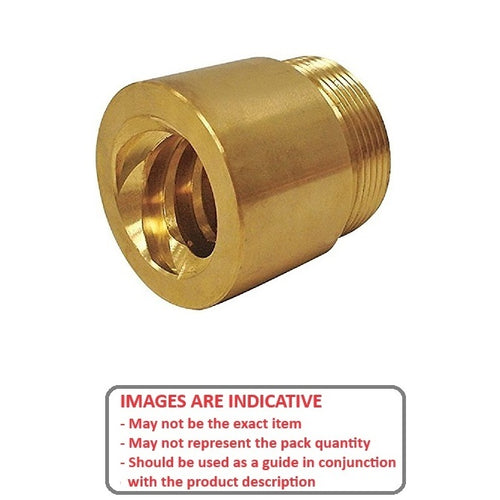

    AR204RSDiagramAR204RSImage
