SMR85A-2RS-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Standard single row radial ball bearings.

Product Data

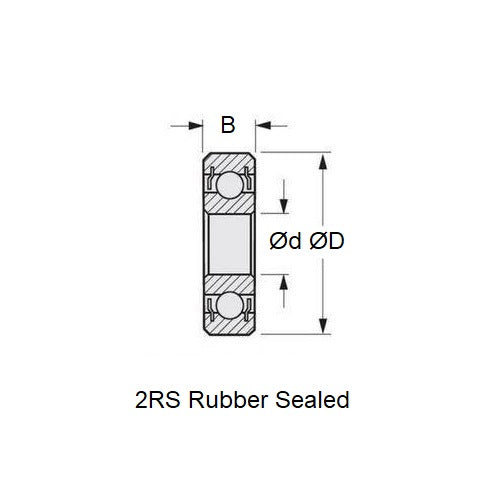

  • ID (d) : 5.000 mm
    (Equiv. 0.197 in.)
  • OD (D) 8.000 mm
    (Equiv. 0.315 in.)
  • Width (B) 2.500 mm
    (Equiv. 0.098 in.)
  • Precision Grade Economy
  • Closure Type 2RS
  • Bearing Type Radial
  • Material Stainless Steel AISI 440C
Bearing Data - TBA Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Sealed Width A SMR85 / 2
  • Sealed SMR85A / 2
  • MR85A Basic Size Ref
