Category Information

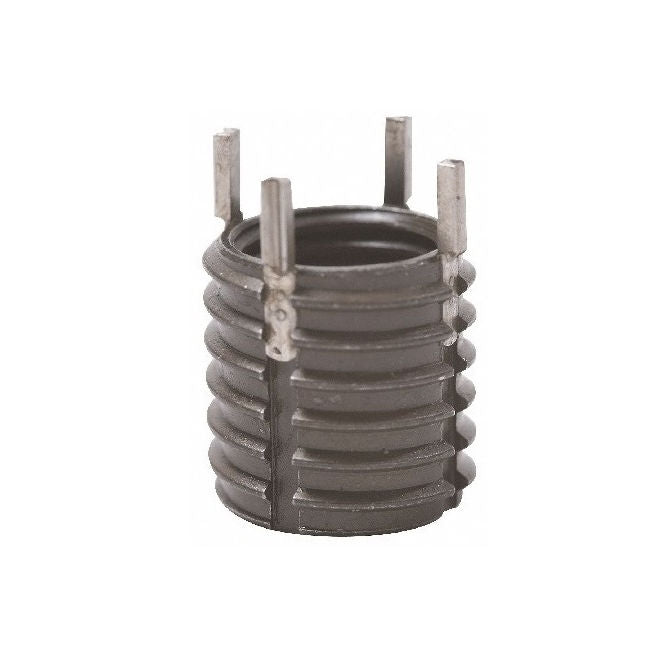

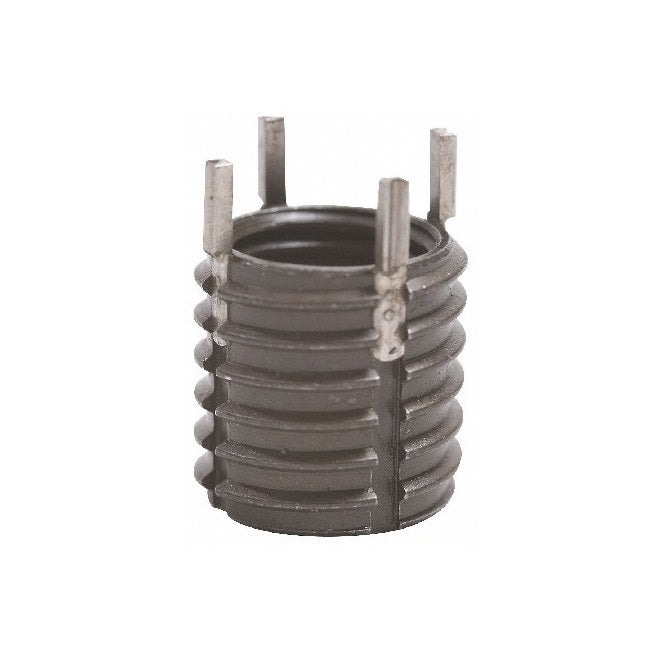

Thread Repair - Inserts - KeylockingKeylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.
- Steel or 303 Stainless Steel as indicated in the tables
- Maximum strength and reliability.
- Positive mechanical lock against rotation:.
- The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
- Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.
Product Data
- Internal Thread : 5/8-18 UNF (15.88mm)
- External Thread 1in.-12 UNC
- Length
22.098
mm
(Equiv. 0.87 in.) - Tap Drill Diameter 21.00 mm
- Countersink Diameter 22.352 mm
- Locking Keys 4
- Tapped Hole Depth 25.400 mm
- Removal Drill Size 21.431 mm
- Removal Drill Depth 4.763 mm
- Installation Tool KLI-64740RS
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KLI-66140
- KLI66140
